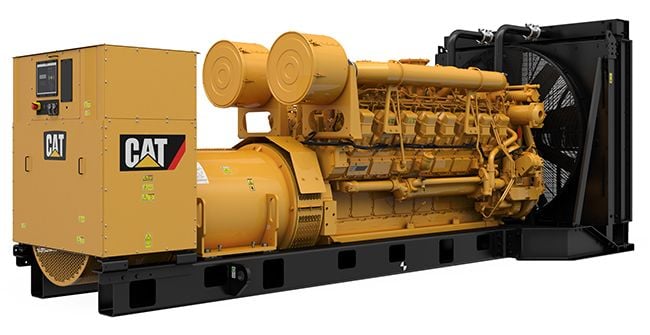

Cat 3516 (50 Hz)

Diesel Generator


About the Cat 3516 (50 Hz)



The 3516 diesel generator sets have been developed to meet your continuous, standby and prime applications and match your power standards. Producing reliable power from 1600 to 2000 kVA at 50 Hz,each generator set has been designed to meet ISO 8528-5 transient response requirements and accepts 100 percent rated load in one step. All models of the 3516 generator sets are designed for fuel efficiency, reducing operating costs. Our integrated control system, including ATS and switchgear, ensures a consistent power supply and connection to your fleet through on-site and remote monitoring options. Our EMCP 4.2 control panel, with a user-friendly interface, puts your management and diagnostic tools in one. It's not just quality that matters but customization, choose from a broad range of accessories and bolt-on system expansion attachments. Discover our flexible packaging to fit unique spatial requirements and environmental conditions. Our 3516 generator sets are developed for such prerequisites, so that you can meet your specific power needs.

Specifications

Generator Set Specifications
Height - Maximum 93.2 in
Length - Maximum 232.9 in
Width - Maximum 90 in
Minimum Rating 1600 kVA
Maximum Rating 2000 kVA
Voltage 220 to 13800
Frequency 50 Hz
Speed 1500 RPM
Generator Set Configurations
Emissions/Fuel Strategy Low Fuel Consumption
Engine Specifications
Engine Model 3516 TA, V-16, 4-Stroke Water-Cooled Diesel
Compression Ratio 13.0:1
Aspiration TA
Governor Type Woodward
Fuel System Mechanical unit injection
Bore 6.69 in
Displacement 4210.64 in³
Stroke 7.48 in

Features

Design Criteria

Design Criteria
The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.

Cat Diesel Engine

Cat Diesel Engine
  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
  • Generator

    Generator
  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High Efficiency
  • Cat EMCP Control Panel

    Cat EMCP Control Panel
    The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP4 systems can be further customized to meet your needs through programming and expansion modules.

    Single-Source Supplier

    Single-Source Supplier
    Fully prototype tested with certified torsional vibration analysis available

    World Wide Product Support

    World Wide Product Support
    Cat Dealers provide extensive post sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Cat® SOSSM program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products.

    UL 2200 / CSA - Optional

    UL 2200 / CSA - Optional
  • UL 2200 listed packages
  • CSA Certified
  • Certain restrictions may apply.
  • Consult with your Cat® Dealer.
