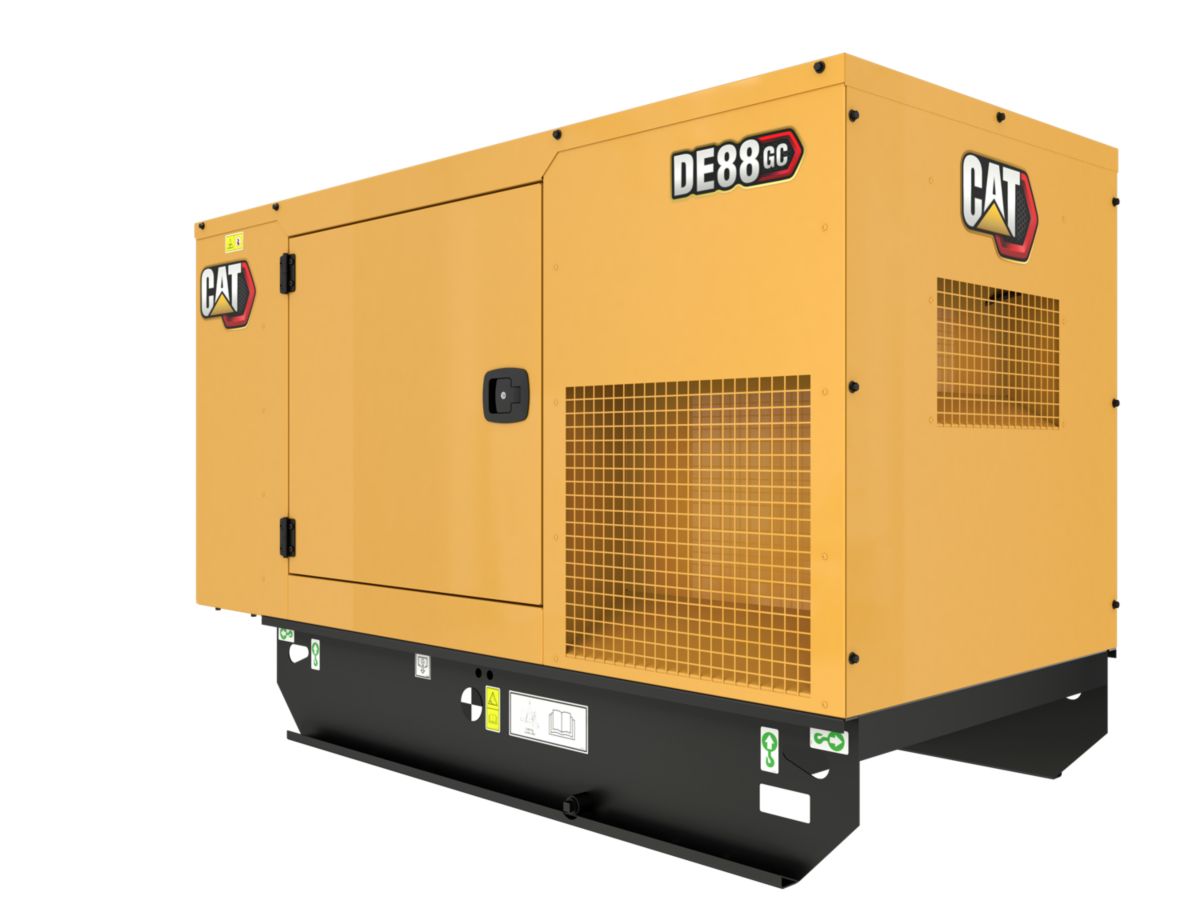

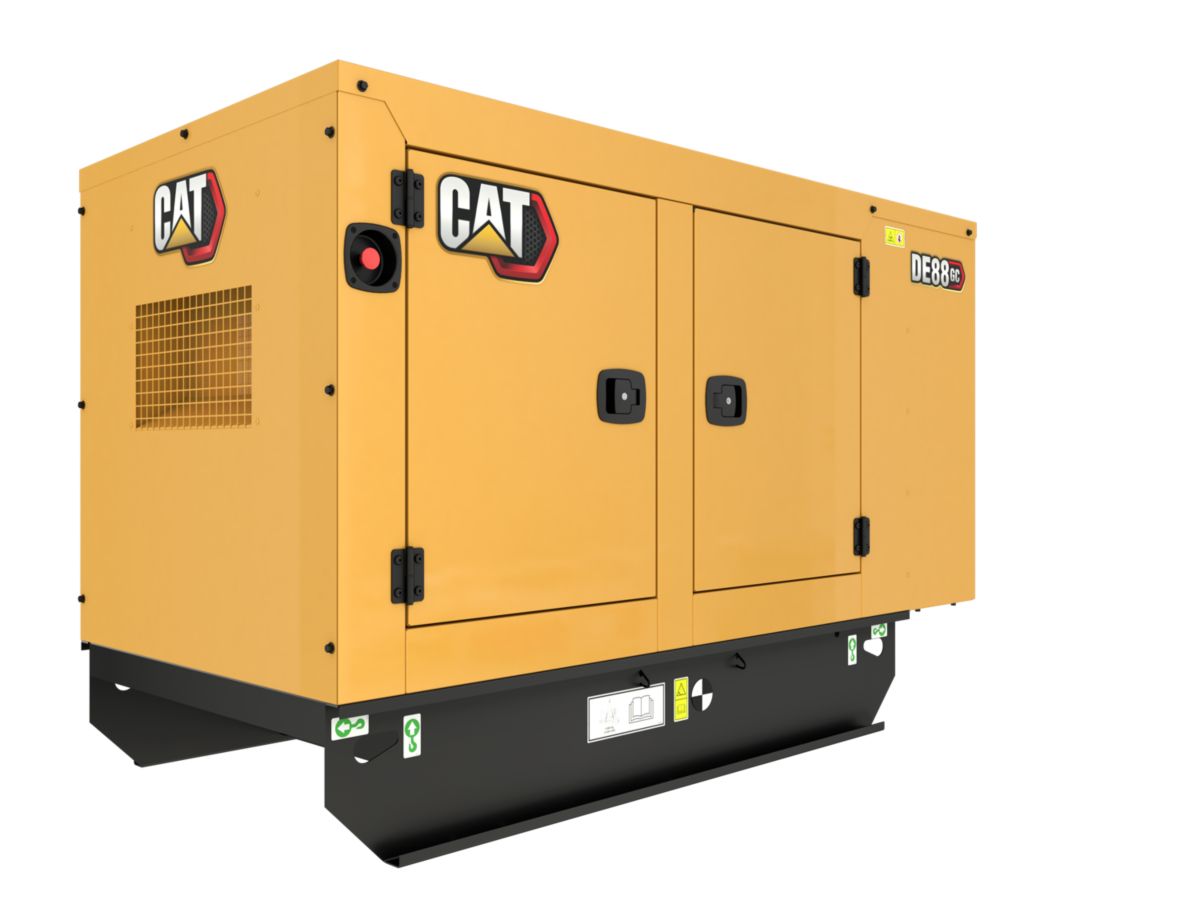

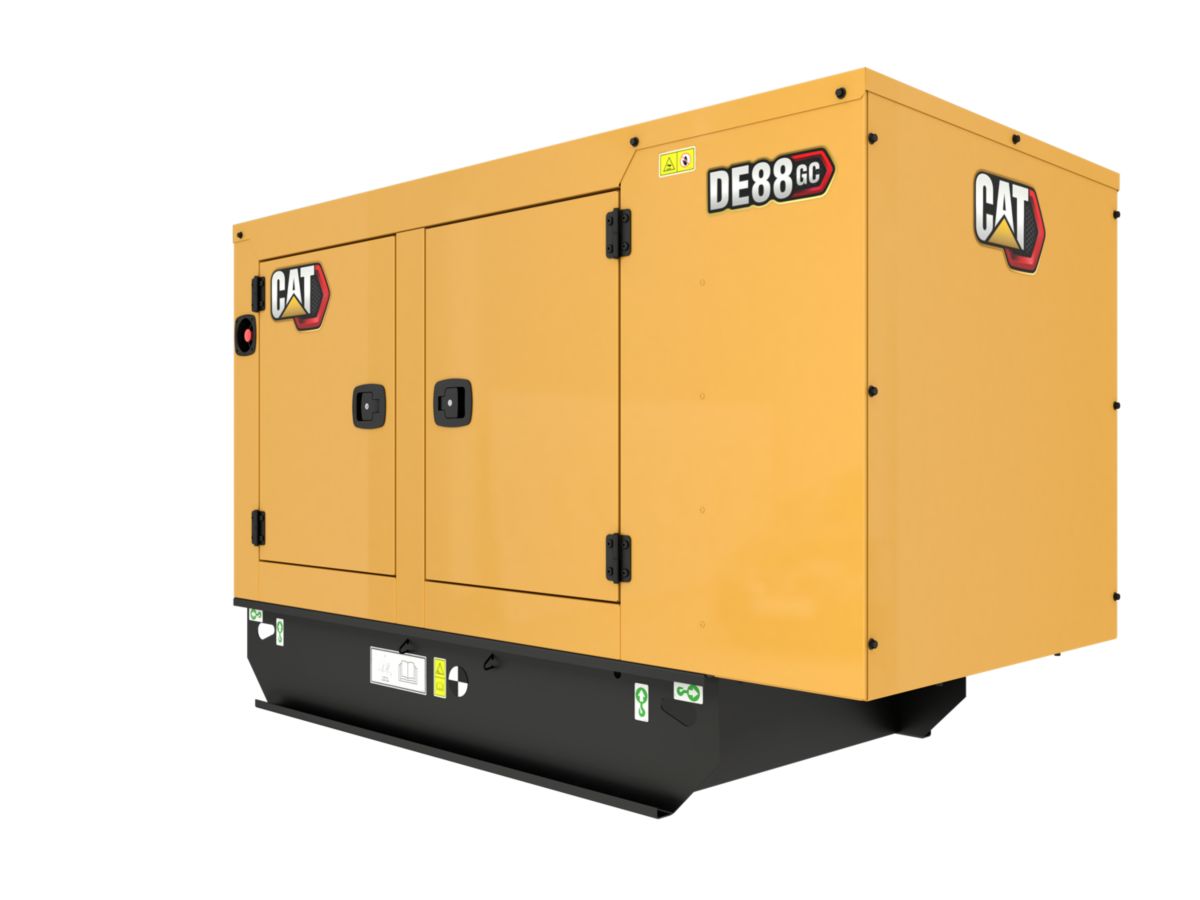

Cat DE88 GC (50 Hz)

Diesel Generator

Download specifications Request quotation

About the Cat DE88 GC (50 Hz)



Producing 88 kVA of reliable power at 50 Hz, our DE88 GC diesel generator sets designed to ISO 8528-5 transient response requirements.

Specifications

Generator Set Specifications
Minimum Rating 88 kVA
Maximum Rating 88 kVA
Emissions/Fuel Strategy Non Regulated
Voltage 380 to 415 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C4.4, In-line 4, 4-cycle diesel
Bore 4.1 in
Stroke 5 in
Displacement 268.5 in
Compression Ratio 17.25:1
Aspiration Turbocharged
Fuel System Inline
Governor Type Mechanical
Generator Set Dimensions
Length - Maximum 89.6 in
Width - Maximum 43.3 in
Height - Maximum 57.7 in
Dry Weight - Genset (maximum) 1245 lb

Features

Cat Generator Set Package

Cat Generator Set Package
  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements
Cat generatorsetpakket

Cat Diesel Engine

Cat Diesel Engine
  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Dieselmotor van Cat

A-Frame Alternator

A-Frame Alternator
  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation
Cat Generator

GCCP 1.1 Control Panel

GCCP 1.1 Control Panel
  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements
Cat EMCP Control Panel

Cooling System

Cooling System
  • Designed to operate in standard ambient temperatures up to 55°C (131°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities
Cooling System

Certifications

Certifications
  • CE Certification Available
  • CIS Certification Available
Certificeringen

One Safe Source

One Safe Source
  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system
Eén veilige bron

World Wide Product Support

World Wide Product Support
  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Worldwide Product Support

View product in 360°

Drag your mouse to rotate the product
