Cat XQP275

Mobile Generator Sets

Download specifications Request quotation
C10882688

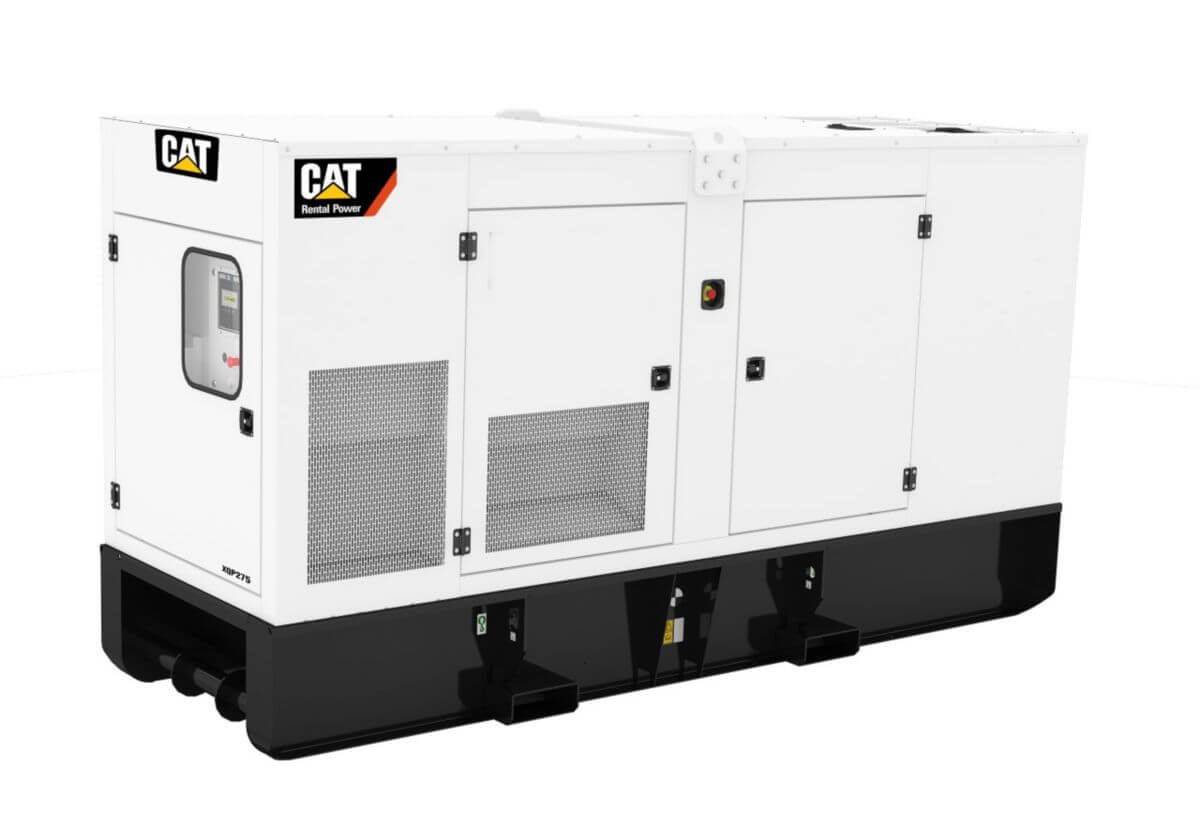

About the Cat XQP275



This Stage IIIA product is emission-optimized and legally required on all mobile applications in Europe. A unique XQP feature is the clutch fan drive technology, where the fan no longer needs to runs continuously at full speed and power. This saves additional fuel, and lowers noise output; an ideal feature when operating at lower loads, in cooler temperatures, or most importantly, in evenings when noise levels are most noticeable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Specifications

Dimensions
Width 55 in
Height 84 in
Length 160 in
Weight 8553 lb
Fuel Consumption EU Stage IIIA
100% Load 50Hz 15.8 gal/hr
100% Load 60Hz 20 gal/hr
75% Load 50Hz 12.7 gal/hr
75% Load 60Hz 15.8 gal/hr
50% Load 50Hz 9.4 gal/hr
50% Load 60Hz 11.6 gal/hr

Features

Rental ready

Rental ready
Robust, durable product with a range of rental ready features to meet job requirements and applications.

Fuel/Emissions Strategy

Fuel/Emissions Strategy
Emissions Equivalent to EU Stage IIIA.

Cat C9 Diesel Engine

Cat C9 Diesel Engine
Industry proven reliability.

Cat EMCP 4.2B Control Panel

Cat EMCP 4.2B Control Panel
Easy to use digital controls.

Cat LC5100 Generator

Cat LC5100 Generator
Integrated voltage regular for fast response in demanding applications.

Robust Galvanised Enclosure

Robust Galvanised Enclosure
Inhibits corrosion in service. Prevents water ingress, provides security and sound attenuation.

Sound Isolated Operator Panel

Sound Isolated Operator Panel
Improved operator comfort.

Cat Connect

Cat Connect
Remote monitoring for fleet management and asset tracking.

Factory Designed, Built and Tested

Factory Designed, Built and Tested
Supported by an industry leading global dealer network.

500 hr Oil Change Intervals

500 hr Oil Change Intervals
Reducing operating costs and producing less waste.

Improved Transportability

Improved Transportability
Drag bars, Lifting frame, Fork lift pockets and 4 point lift.

Additional Options Available

Additional Options Available
Synchronising controls. Extended Service interval kits.
