Cat C2.8

Industrial Diesel Engines - Highly Regulated

About the Cat C2.8

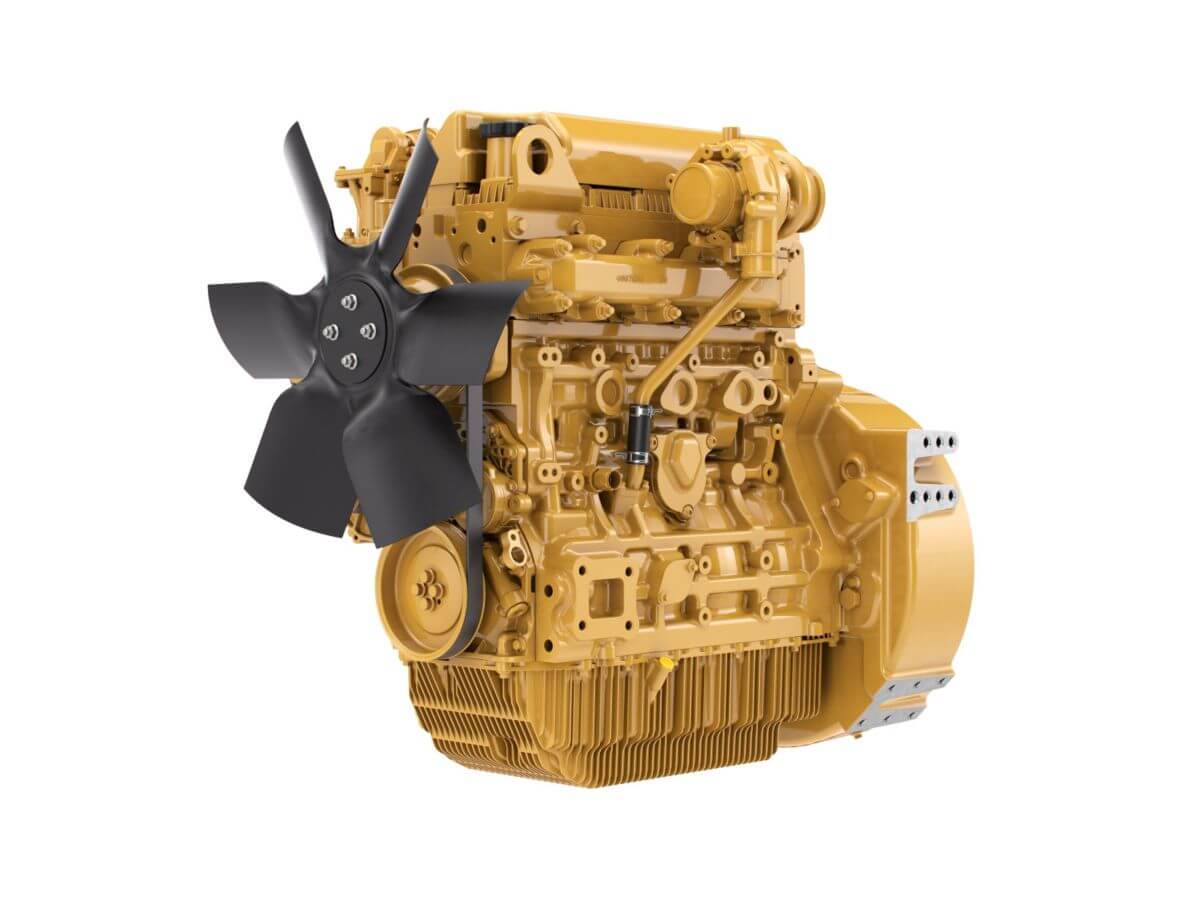

The Cat® C2.8 Industrial Diesel Engines offer the perfect balance of compact size, reliability, and performance. This engine is offered in ratings ranging up to 55 bkW (74 bhp) @ 2500 rpm. The C2.8 is designed to meet the needs of many industries and applications, including agricultural tractors, aerial lifts, aircraft ground support, bore/drill rigs, chippers/grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.

Specifications

Power Rating
Minimum Power 45 bkW
Maximum Power 55 bkW
Rated Speed 2500 rpm
Emission Standards
Emissions U.S. EPA Tier 4 Final Nonroad Emission Standards. Also designed to meet proposed EU Stage V Nonroad Emission Standards.
General
Engine Configuration In-Line 4, 4-Stroke-Cycle Diesel
Bore 90 mm (3.5 in)
Stroke 110 mm (4.3 in)
Displacement 2.8 L (171 in³)
Aspiration Turbocharged (T) and Turbocharged-Aftercooled (TA)
Compression Ratio 17:1
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Cooling System - Capacity 4 L (1.06 qt)
Aftertreatment Dimensions - Approximate
DOC Diameter TBA
DOC Length TBA
DOC Weight TBA
Engine Dimensions - Approximate
Dry Weight - Basic Operating Engine Without Optional Attachments 245 kg (540 lb)
Height 766 mm (30.2 in)
Length 635 mm (25.0 in)
Width 561 mm (22.1 in)

Features

Features

Reliable, Quiet and Durable Power

Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven technologies and extensive field validation assure reliability and durability in tough nonroad applications.

High Performance

High Performance
Leading edge fuel systems and turbocharging provide high torque even at lower engine speeds.

Fuel Efficiency

Fuel Efficiency
Fuel consumption optimized to match the measured operating cycles of a wide range of equipment types.

Fuel & Oil

Fuel & Oil
U.S. EPA Tier 4 Interim or Tier 4 Final, EU Stage IIIB, Stage IV or proposed Stage V engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 10 ppm sulfur (EU) and 15 ppm sulfur (U.S.), and new oil formulations to support the new technology. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Broad Application Range
Industry-leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.
