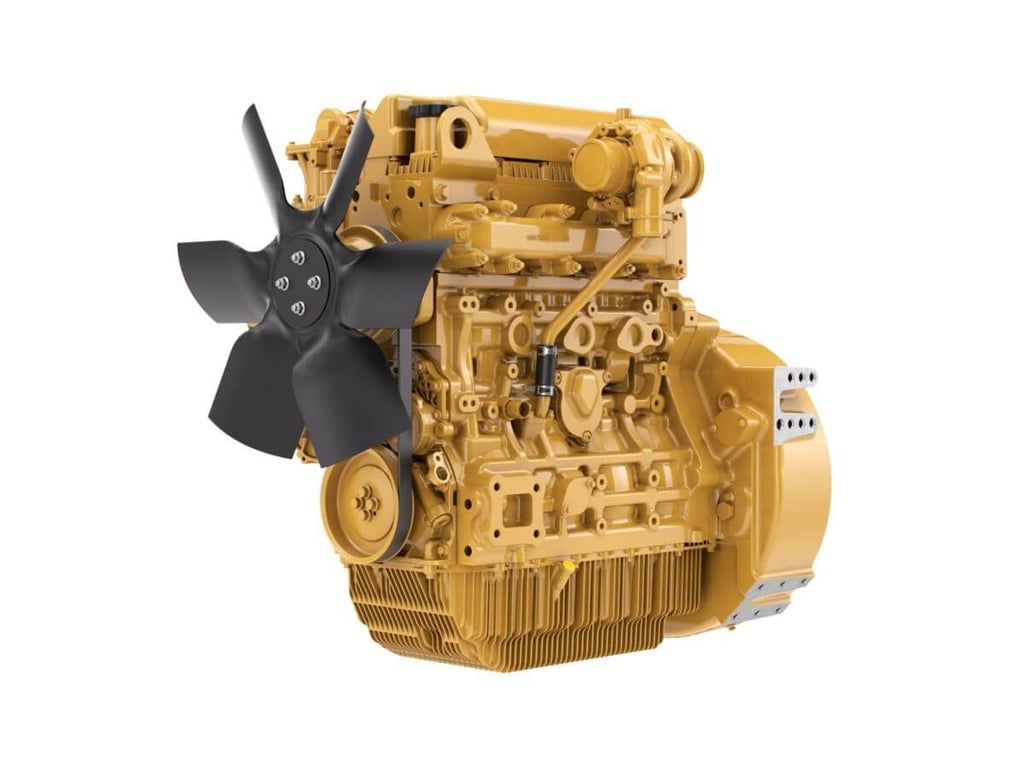

Cat C3.6

Industrial Diesel Engines - Highly Regulated

About the Cat C3.6



The Cat® C3.6 Industrial Diesel Engines offer the perfect balance of compact size, reliability, and performance. This engine is offered in ratings ranging up to 100 bkW (134 bhp) @ 2200 rpm. The C3.6 is designed to meet the needs of many industries and applications, including agricultural tractors, aircraft ground support, bore/drill rigs, chippers/grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.

Specifications

Power Rating
Minimum Power 55 bkW
Maximum Power 100 bkW
Rated Speed 2000-2400 rpm
Emission Standards
Emissions U.S. EPA Tier 4 Final Nonroad Emission Standards. Also designed to meet proposed EU Stage V Nonroad Emission Standards.
General
Engine Configuration In-Line 4, 4-Stroke-Cycle Diesel
Bore 98 mm (3.9 in)
Stroke 120 mm (4.7 in)
Displacement 3.6 L (220 in³)
Aspiration Turbocharged-Aftercooled (TA)
Compression Ratio 17:1
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Cooling System - Capacity 4 L (1.06 qt)
Aftertreatment Dimensions - Approximate
DOC Diameter TBA
DOC Length TBA
DOC Weight TBA
SCR Diameter TBA
SCR Length TBA
SCR Weight TBA
Engine Dimensions - Approximate
Dry Weight - Basic Operating Engine Without Optional Attachments 275 kg (606 lbs)
Height 776 mm (30.6 in)
Length 667 mm (26.3 in)
Width 569 mm (22.4 in)

Features

Emissions

Emissions
Meets U.S. EPA Tier 4 Final Nonroad emission standards. Designed to meet proposed EU Stage V Nonroad emission standards. As of publishing date, Stage V regulations have not been finalized.

Reliable, Quiet and Durable Power

Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven technologies and extensive field validation assure reliability and durability in tough nonroad applications.

High Performance

High Performance
Leading edge fuel systems and turbocharging provide high torque even at lower engine speeds.

Fuel Efficiency

Fuel Efficiency
Fuel consumption optimized to match the measured operating cycles of a wide range of equipment types.

Fuel & Oil

Fuel & Oil
U.S. EPA Tier 4 Interim or Tier 4 Final, EU Stage IIIB, Stage IV or proposed Stage V engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 10 ppm sulfur (EU) and 15 ppm sulfur (U.S.), and new oil formulations to support the new technology. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Broad Application Range
Industry-leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Low Cost Maintenance

Low Cost Maintenance
Worldwide service delivers ease of maintenance and simplifies the servicing routine. Capable of optimal oil change intervals of 500 hours. The S•O•S℠ program is available from your Cat dealer to determine oil change intervals and provide optimal performance.

Quality

Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

World-class Product Support Offered Through Global Cat Dealer Network
  • Scheduled maintenance, including SOS℠ sample
  • Customer Support Agreements (CSA)
  • Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

U.S. EPA Tier 4 Final, Proposed EU Stage V Aftertreatment Features

U.S. EPA Tier 4 Final, Proposed EU Stage V Aftertreatment Features
Technology – The DOC, DPF and SCR technology provides customers with a solution which meets the emissions standards while providing optimal fuel consumption and transient response. For power ratings below 56 bkW (75 bhp), the SCR is not required. Mounting – On engine aftertreatment offered for best value and simplest OEM design and manufacturing processes. Remote mount alternatives are also available.
