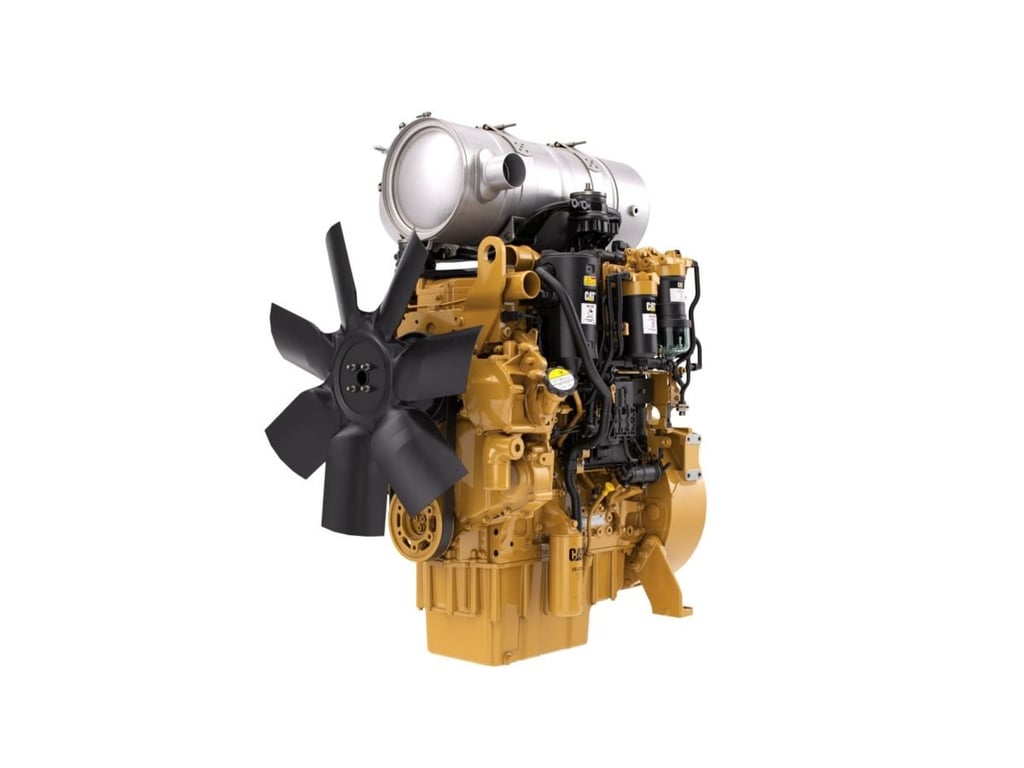

Cat C4.4 ACERT™

Industrial Diesel Engines - Highly Regulated

About the Cat C4.4 ACERT™



The Cat<sup>®</sup> C4.4 ACERT Industrial Diesel Engine is offered in ratings ranging from 74-129.4 bkW (99-173.5 bhp) @ 2200 rpm, which meet U.S. EPA Tier 4 Final, EU Stage IV emission standards. U.S. EPA Tier 4 Interim equivalent and EU Stage IIIB equivalent ratings are also available using U.S. EPA and EU Flex provisions. Industries and applications powered by C4.4 ACERT engines include: Agriculture, Aerial Lifts, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Feller Bunchers, Forestry, Forklifts, General Industrial, Harvesters, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Sweepers, Paving Equipment, Pumps, Skidders, Specialty Ag Equipment, Sprayers, Trenchers, Turf and Landscaping and Underground Mining Equipment.

Specifications

Power Rating
Minimum Power 65.9 bkW
Maximum Power 129.4 bkW
Rated Speed 2200 rpm
Emission Standards
Emissions U.S. EPA Tier 4 Final, EU Stage IV
General
Engine Configuration Inline 4, 4-Stroke-Cycle Diesel
Bore 105 mm (4.13 in)
Stroke 127 mm (5.00 in)
Displacement 4.4 L (268.5 in³)
Aspiration Turbocharged Aftercooled (TA) or Series Turbocharged Aftercooled (TTA)
Compression Ratio 16.5:1
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Cooling System - Capacity 10.8 L (11.4 qt)
Lube System - Refill 5.2-13.5 L (5.5-14.27 qt)
Engine Dimensions - Approximate
Height 848.2-867.6 mm (33.4-34.1 in)
Length 845.1 mm (33.3 in)
Weight - Net Dry - Basic Operating Engine Without Optional Attachments 400-420 kg (881.8-926 lb)
Width 741.6-772.4 mm (29.1-30.4 in)
Aftertreatment Dimensions - Approximate
Diameter 224.9-270.3 mm (9.6-10.6 in)
Height 279-430 mm (11-16.9 in)
Length 647-828 mm (25.5-32.6 in)
Weight 34-80 kg (75-17;6.4 lb)
Width 365-695 mm (14.3-27.4 in)

Features

Reliable, Quiet and Durable Power

Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

High Performance

High Performance
Series turbocharging with smart wastegate available on specific ratings for fast response, high power, and increased torque.

Fuel Efficiency

Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Fuel & Oil

Fuel & Oil
Tier 4 Interim or Tier 4 Final, Stage IIIB or Stage IV engines require Ultra Low Sulfur Diesel (ULSD) fuel containing a maximum of 15 ppm sulfur, and new oil formulations to support the new technology. Cat® engines are designed to accommodate B20 biofuel. Your Cat dealer can provide more information regarding fuel and oil.

Broad Application Range

Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Package Size
Ideal for equipment with narrow engine compartments. Multiple installation options minimize total package size.

Low Cost Maintenance

Low Cost Maintenance
Worldwide service delivers ease of maintenance and simplifies the servicing routine. Hydraulic tappets, multi-vee belts, "no ash service" aftertreatment, and 500-hour oil change intervals enable low-cost maintenance. Many service items have a choice of location on either side of the engine to enable choice of service access. The S·O·SSM program is available from your Cat dealer to determine oil change intervals and provide optimal performance.

Quality

Quality
Every Cat engine is manufactured to stringent quality standards in order to assure customer satisfaction.

World-class Product Support Offered Through Global Cat Dealer Network

World-class Product Support Offered Through Global Cat Dealer Network
  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

World-class Product Support Offered Through Global Cat Dealer Network

World-class Product Support Offered Through Global Cat Dealer Network
  • Scheduled maintenance, including SOSSM sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program

Tier 4 Interim, Stage IIIB Aftertreatment Features

Tier 4 Interim, Stage IIIB Aftertreatment Features

Regeneration. Passive regeneration completely transparent to the operator.
Mounting. Extensive range of inlets and outlets, as well as remote off- and on-engine installations, provide flexibility for many installations.
Service. Service-free DPF for the emissions life of the engine.

Tier 4 Final, Stage IV Aftertreatment Features

Tier 4 Final, Stage IV Aftertreatment Features

Regeneration. The DOC/SCR modular design offers a simple, compact package while providing high levels of performance. A DOC/DPF/SCR option is available for higher power machines. While in use, both DOC/SCR an DOC/DPF/SCR systems offer transparent operation to the user.
Mounting. Extensive range of inlets and outlets, as well as remote and on-engine installations, provide flexibility for many installations.
Service. Both DOC/SCR an DOC/DPF/SCR systems are service-free for the emissions life of the engine.
Available in 12V or 24V systems
