Cat C7.1 ACERT

Industrial Diesel Power Units - Lesser Regulated & Non-Regulated

Request quotation

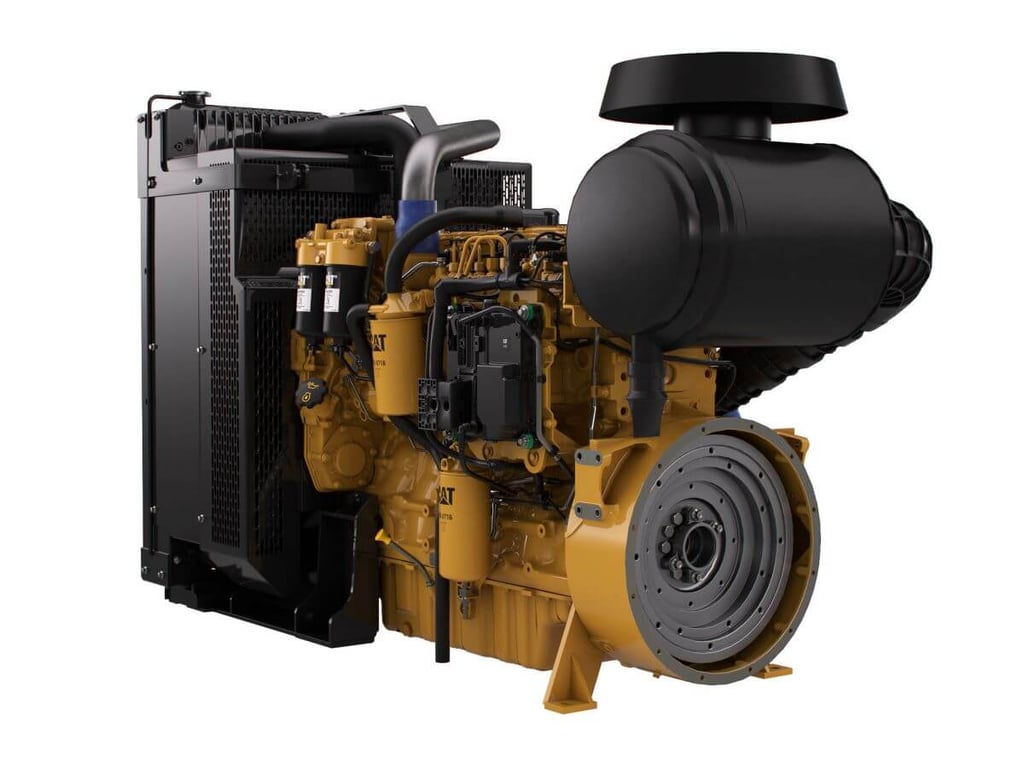

About the Cat C7.1 ACERT



The C7.1 ACERT™ Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring, completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready-made for irrigation, industrial, mining and other pump applications.

Specifications

Power Rating
Minimum Rating 156 BHP
Maximum Rating 275 BHP
Rated Speed 116-205 bkW/156-275 bhp @ 2200 rpm, 129 bkW/173 bhp @ 2500 rpm
Emission Standards
Emissions China Stage II, U.S. EPA Tier 3 Equivalent, EU Stage IIIA Equivalent. Designed to meet China Stage III emission standards.
General
Engine Configuration Inline 6, 4-Stroke-Cycle Diesel
Bore 105 mm (4.1 in)
Stroke 135 mm (5.3 in)
Displacement 7.01 L (427.7 in³)
Aspiration Turbocharged Aftercooled (TA)
Compression Ratio 16.8:1
Combustion System Direct Injection
Rotation from Flywheel End Counterclockwise
Power Unit Dimensions - Approximate
Height 1140 mm (44.8)
Length 1728 mm (68 in)
Weight - Net Dry - Standard Configuration Without Oil, Cooling, Clutch, Compressor, A/C 788 kg (1737 lbs)
Width 788 mm (31 in)

Features

Features

Reliable, Quiet and Durable Power

Reliable, Quiet and Durable Power
World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Fuel Efficiency

Fuel Efficiency
Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.

Broad Application Range

Broad Application Range
Industry leading range of factory configurable ratings and options for agricultural, material handling, construction, mining, aircraft ground support, and other industrial applications.

Package Size

Package Size
Exceptional power density enables standardization across numerous applications. Multiple installation options minimize total package size. Ideal for equipment with narrow engine compartments.

World-class Product Support Offered Through Global Cat Dealer Network

World-class Product Support Offered Through Global Cat Dealer Network
  • Scheduled maintenance, including SOS℠ sample
  • Customer Support Agreements (CSA)
  • Caterpillar Extended Service Coverage (ESC)
  • Superior dealer service network
  • Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
