Cat C32 IMO III

Auxiliary Engines

About the Cat C32 IMO III

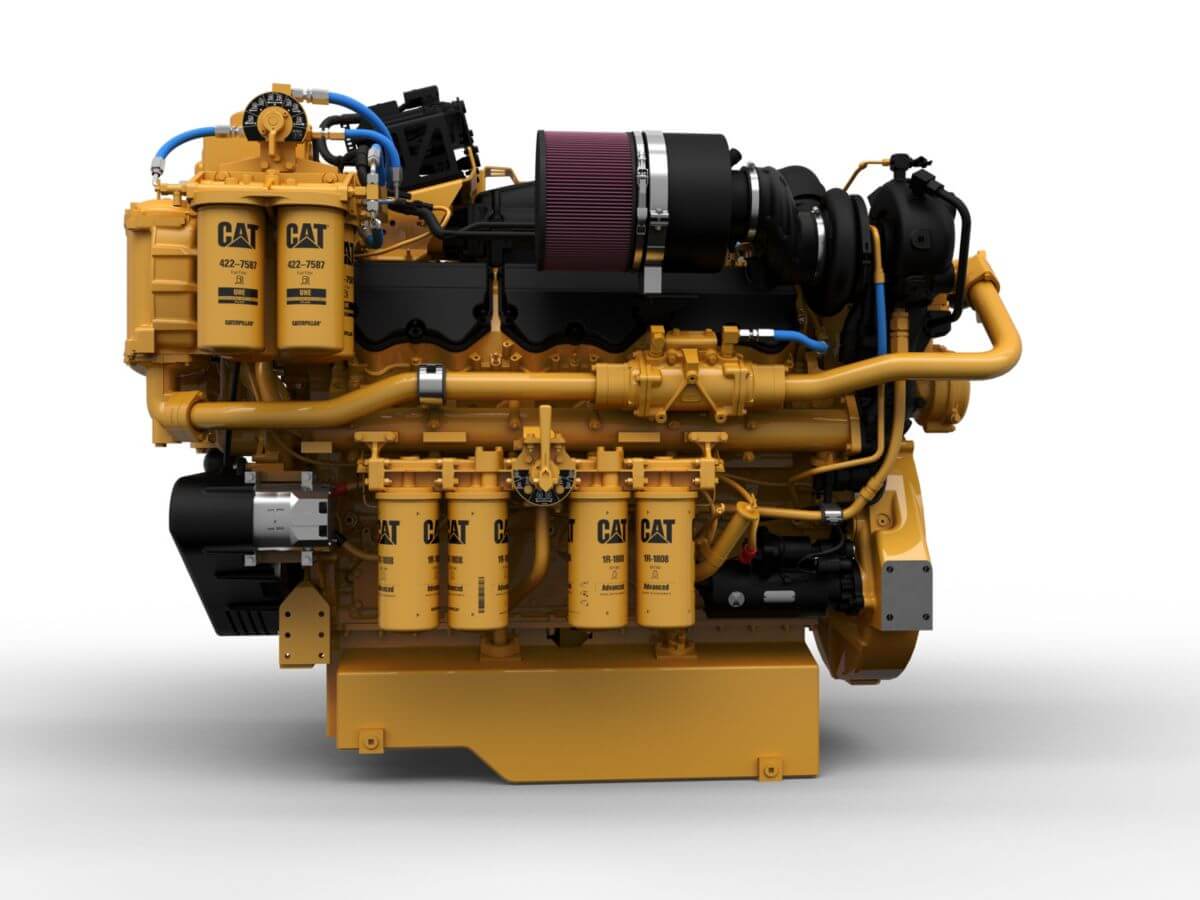

Cat C32 Auxiliary / Diesel Electric Propulsion Engine (IMO III)

Specifications

Power Rating
Minimum Rating 352 BHP
Maximum Rating 1172 BHP
Engine Specifications
Aspiration Turbocharged-aftercooled aspiration
Bore 5.71 in
Configuration Vee 12, 4-stroke-cycle diesel
Displacement 1959 in³
Rotation Counterclockwise from flywheel end
Stroke 6.38 in
Emissions IMO III emissions certified (SCR required)
Cooling Heat exchanger or keel cooled
Flywheel Housing SAE No. 0 with SAE No. 18 flywheel (136 teeth)
Governor Electronic (A5 ECM)
Oil Change Interval 750 hrs - deep pan
Rated Engine Speed 1500 rpm
Refill Capacity Lube Oil System w/ oil filter change: 146 L (38.5 gal) - deep pan
Dimensions & Weights
Maximum Engine Dry Weight 7160 lb
Maximum Height 63.5 in
Maximum Length 89.8 in
Maximum Width 57.3 in
Minimum Engine Dry Weight 6950 lb
Minimum Height 59.3 in
Minimum Length 83.9 in
Minimum Width 57.1 in
Clean Emissions Module (CEM) - Dimensions
6 Brick U-Flow - Height 23.5 in
6 Brick U-Flow - Length 85 in
6 Brick U-Flow - Weight 1235 lb
6 Brick U-Flow - Width 56.9 in
6 Brick Z-Flow - Height 23.5 in
6 Brick Z-Flow - Length 147.7 in
6 Brick Z-Flow - Weight 1246 lb
6 Brick Z-Flow - Width 43.5 in
Dosing Cabinet - Height 22.8 in
Dosing Cabinet - Length 37.4 in
Dosing Cabinet - Weight 209 lb
Dosing Cabinet - Width 18.8 in

Features

Emissions

Emissions
Utilizes SCR Technology to enable IMO III emission regulations compliance while lowering operational costs

Control Strategy

Control Strategy
Utilizes closed loop air assisted DEF dosing control strategy that delivers: Highest efficiency mixing and control to lower operational costs; Extends emissions useful life; Ensures compliance; Flexible to urea quality

Fuel System

Fuel System
Enhanced control of fuel injection optimized through crank timing and the A5 ECM technology

Power Reserve

Power Reserve
Industry leading power reserve

Certifications

Certifications
Wide range of available Marine Society certifications

Warranty

Warranty
Industry-leading warranty coverage for factory packaged components

Service

Service
Global dealer network for service in any location
