Cat C8.7 High Performance

High Performance Propulsion and Maneuvering Solutions

Request quotation
C10291976

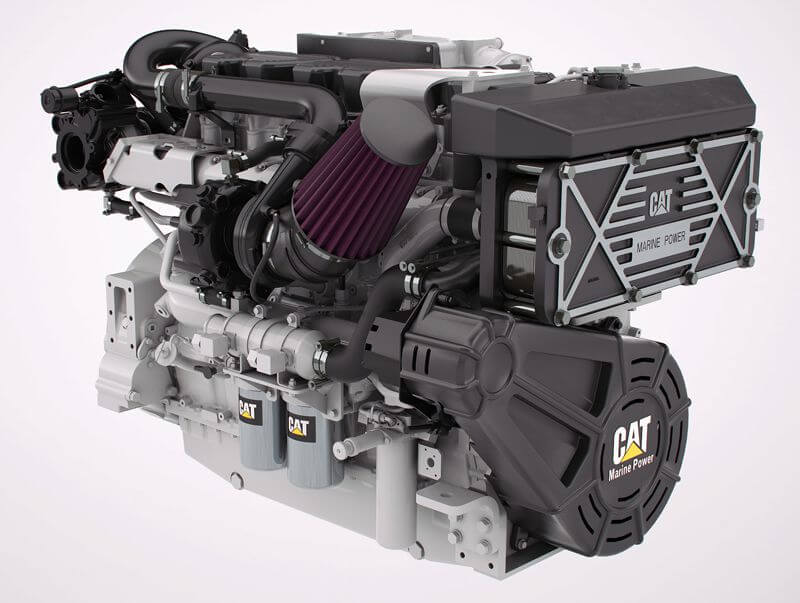

About the Cat C8.7 High Performance



The C18 ACERT marine propulsion engine has ratings for recreational applications that meet U.S. EPA Tier 3, IMO II, and EU Stage IIIA Regulations. This marine engine incorporates the latest core engine system innovations to provide maximum benefits in power density, performance, emissions, and fuel efficiency. Not only is it equipped with engine monitoring and protection features, it is also compatible with Cat display and vessel control systems. With this engine comes the unmatched worldwide marine support network including Cat dealers and hundreds of authorized marine dealers. Their combined experience and expertise, products and services, backup and support allow your recreational pleasure craft to remain precisely that — a pleasure.

Specifications

Ratings
Power Range 1015-1150 mhp, 1001-1136 bhp, 747-847 bkW
Engine
Speed Range 2300 rpm
Emissions EPA Tier 3, IMO II, EU IW
Aspiration TA,TTA
Bore 5.7 in
Stroke 7.2 in
Displacement 1106 in³
Rotation from Flywheel End Counterclockwise
Configuration In-line 6, 4-Stroke-Cycle Diesel
Dimensions & Weights
Maximum Dry Weight 4299 lb
Maximum Height 51.2 in
Maximum Length 76 in
Maximum Width 47.4 in
Minimum Dry Weight 4000 lb
Minimum Height 47.2 in
Minimum Length 73 in
Minimum Width 44.6 in

Features

Separate circuit aftercooling system

Separate circuit aftercooling system
The primary advantage of the separate circuit aftercooling system (SCAC) is that no sea water circulates through the aftercooler

Emissions

Emissions
EPA Tier 3 compliant, IMO II and EU IWW compliant

Cooling system

Cooling system
Heat exchanger and Keel cooled options for all ratings

Turbo Configurations

Turbo Configurations
Single turbo configurations for all ratings

Competitive size and weight

Competitive size and weight

Marine Certifications

Marine Certifications
All major MCS type approvals available from factory
