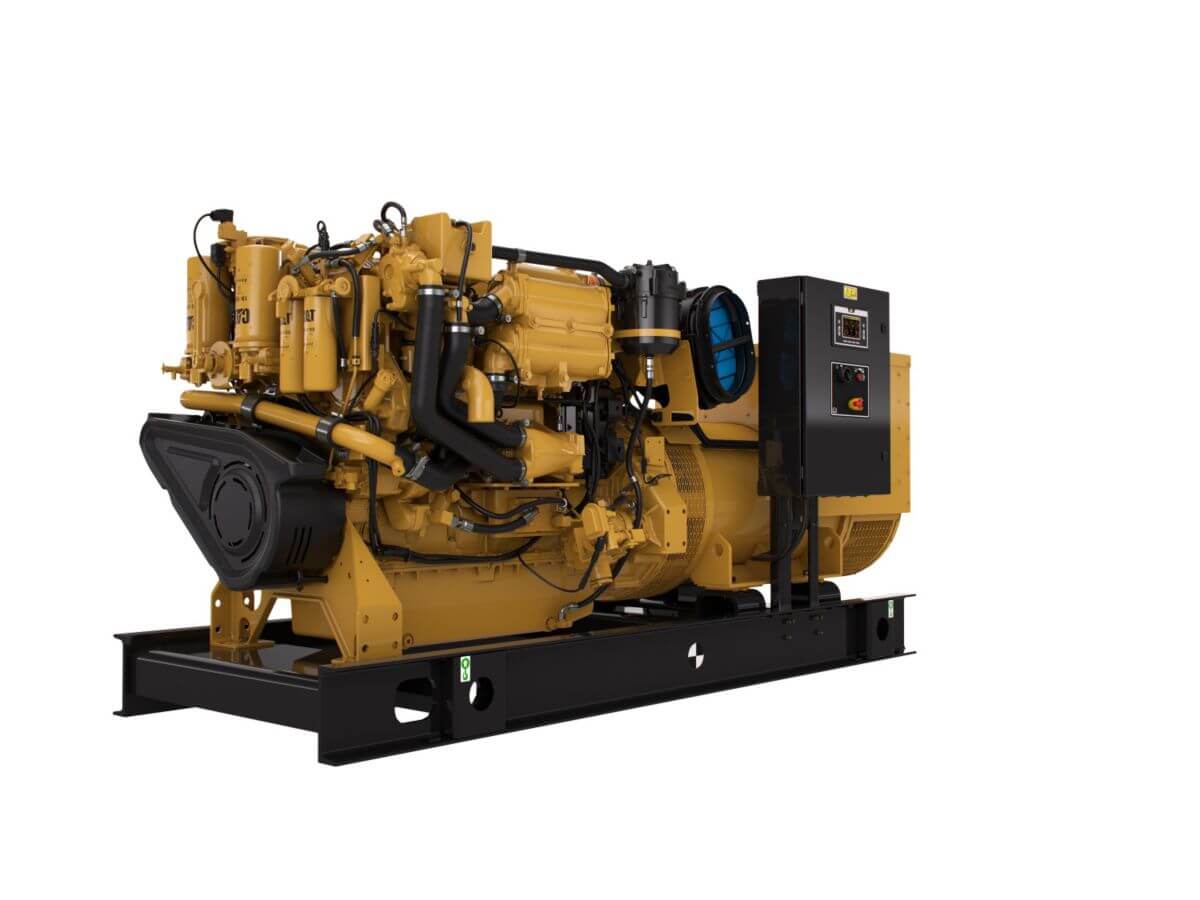

Cat C18 ACERT

Marine Generator Sets

Request quotation

About the Cat C18 ACERT



The C18 SRMP is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings.

Specifications

Generator Set Specifications
Minimum Rating 260 ekW (325 kVA)
Maximum Rating 565 ekW (706 kVA)
Frequency 50 hz
Speed 50 Hz - 1500 rpm, 60 Hz - 1800 rpm
Engine Specifications
Configuration In-line 6, 4-Stroke-Cycle Diesel
Aspiration Turbocharged - aftercooled
Bore 5.7 in
Stroke 7.2 in
Fuel System MEUI
Generator Set Configurations
Emissions EPA Tier 3, IMO II, EU IW
Generator Set Dimensions - Keel and Hex Cooled
Height 64.9 in
Length 119.6 in
Weight - Approximate 9747 lb
Width 55.6 in
Generator Set Dimensions - Radiator Cooled
Height 94.8 in
Length 55.6 in
Weight - Approximate 13396 lb
Width 66.9 in
Generator Specifications
Excitation SRMP
Insulation Class H
IP Rating IP23 (standard), IP 44 (optional)
Voltage Regulator CDVR (Digital Voltage)

Features

Separate circuit aftercooling system

Separate circuit aftercooling system
The primary advantage of the separate circuit aftercooling system (SCAC) is that no sea water circulates through the aftercooler

Emissions

Emissions
EPA Tier 3 compliant, IMO II and EU IWW compliant

Cooling system

Cooling system
Heat exchanger and Keel cooled options for all ratings

Turbo Configurations

Turbo Configurations
Single turbo configurations for all ratings

Competitive size and weight

Competitive size and weight

Marine Certifications

Marine Certifications
All major MCS type approvals available from factory
