Cat 239D Compact Track Loader

Compact Track Loaders

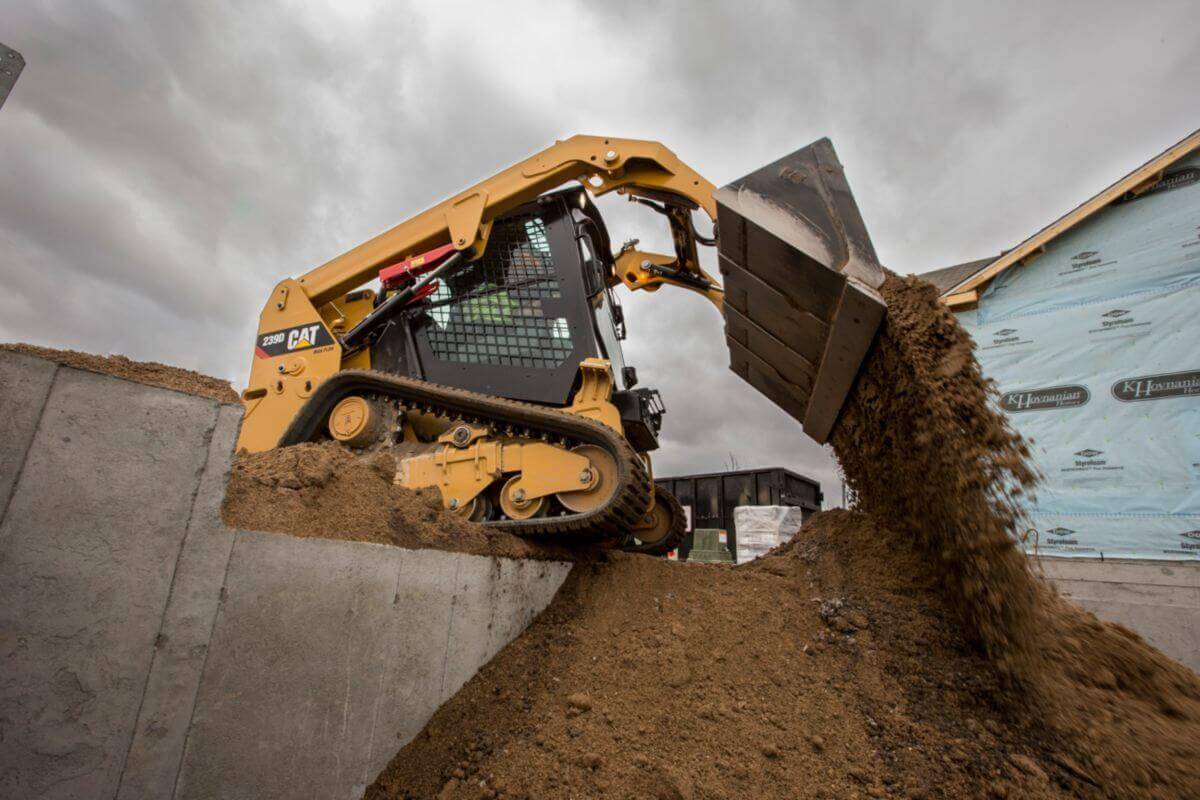

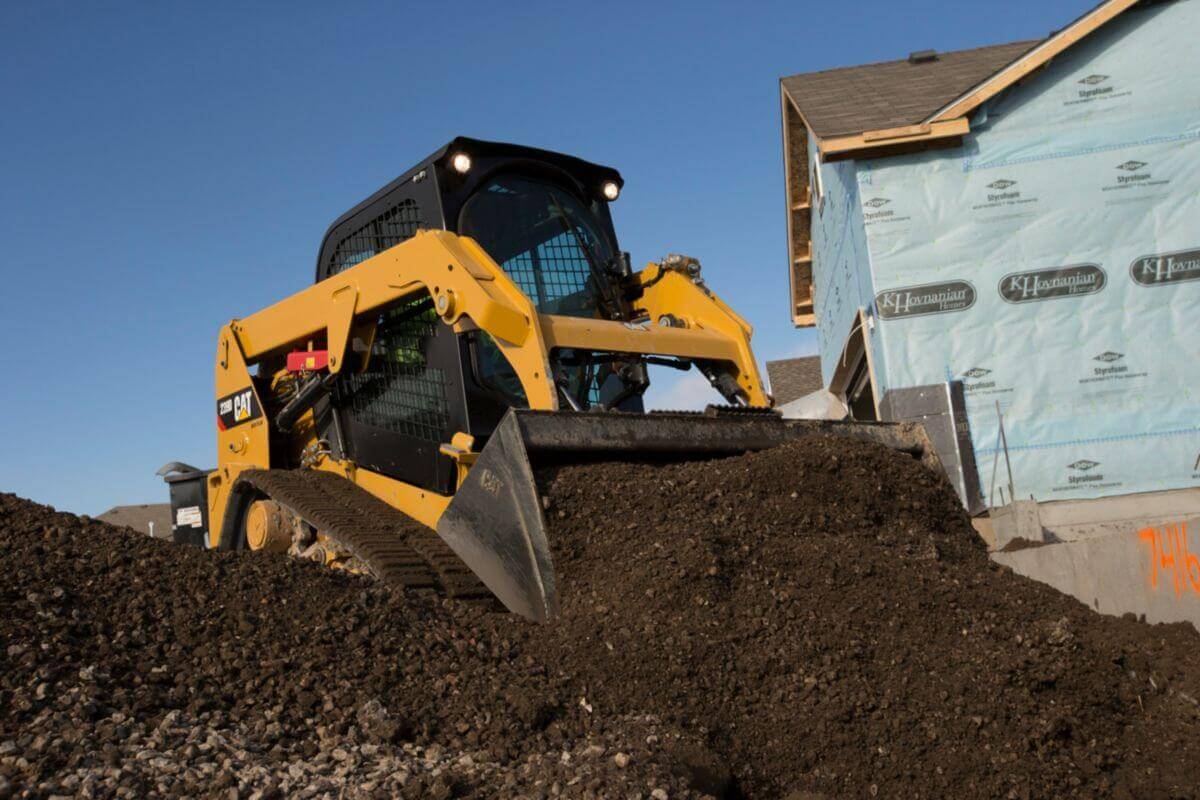

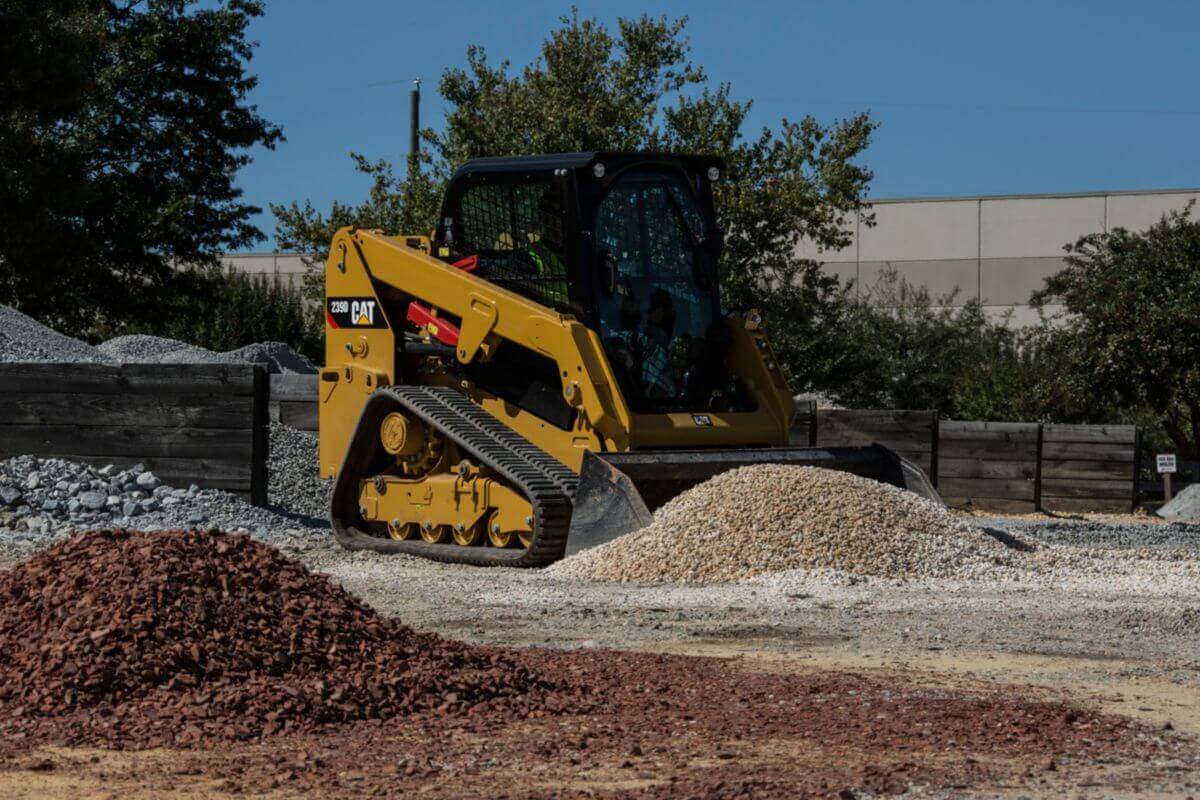

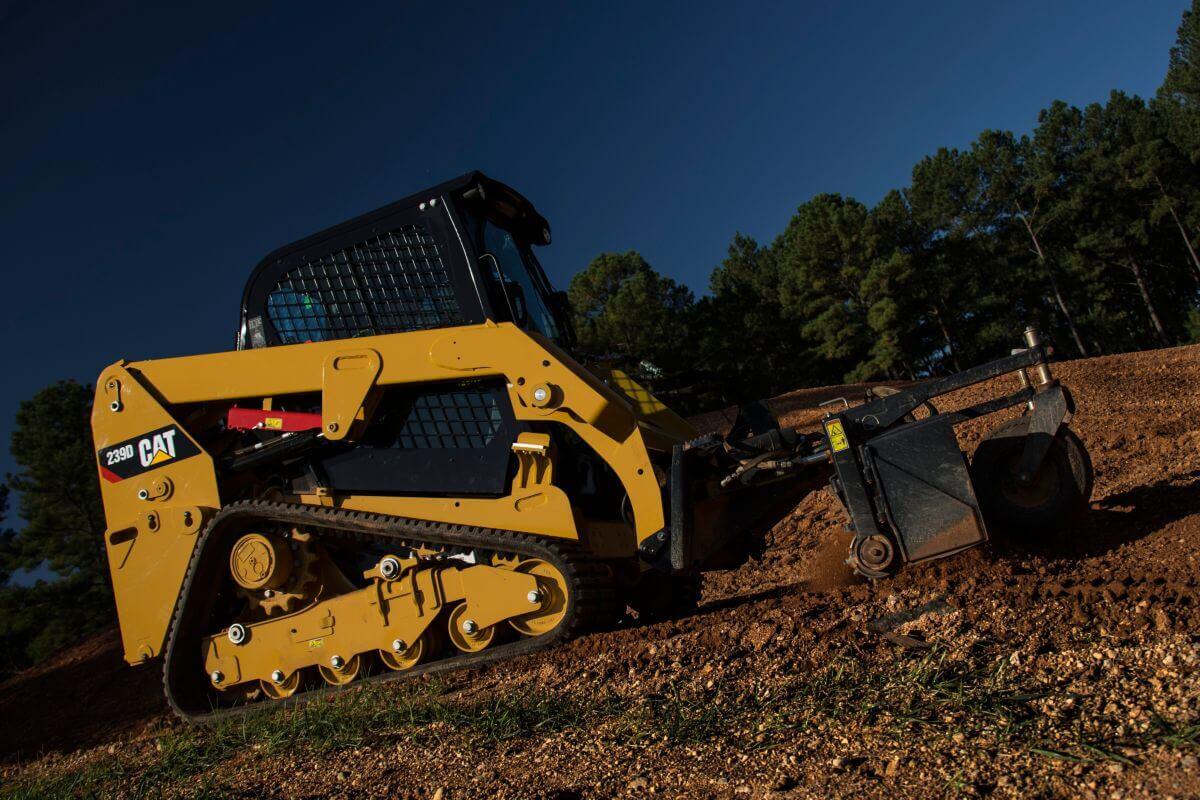

About the Cat 239D Compact Track Loader



The Cat® 239D Compact Track Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Specifications

Engine
Net Power 65.8 HP
Gross Power - SAE J1995 67.1 HP
Net Power - SAE 1349 65.8 HP
Displacement 134.3 in³
Bore 3.3 in
Stroke 3.9 in
Net Power - ISO 9249 66.5 HP
Peak Torque - 1,500 rpm - SAE J1995 153 ft·lbf
Weights
Operating Weight 7289 lb
Operating Specifications
Rated Operating Capacities - 50% Tipping Load 2050 lb
Tipping Load 4100 lb
Breakout Force - Tilt Cylinder 3969 lb
Ground Contact Area - With 320 mm/12.6 in Track 1373 in²
Ground Pressure - With 320 mm/12.6 in Track 5.3 psi
Rated Operating Capacity with Optional Counterweight 2250 lb
Ground Contact Area - With 400 mm/15.7 in Track 1716 in²
Ground Pressure - With 400 mm/15.7 in Track 4.4 psi
Rated Operating Capacities - 35% Tipping Load 1435 lb
Dimensions
Length - Track on Ground 54.5 in
Overall Length - Track 71.2 in
Height - Top of Cab 80.1 in
Ground Clearance 7.7 in
Bucket Pin Height - Carry Position 8.6 in
Bucket Pin Height - Maximum Lift 111.2 in
Clearance at Maximum Lift and Dump 81 in
Length - With Bucket on Ground 127.3 in
Length - Without Bucket 99.3 in
Maximum Overall Height 143.5 in
Maximum Reach - With Arms Parallel to Ground 53.4 in
Reach - Maximum Lift/Dump 22.2 in
Turning Radius from Center - Bucket 81.5 in
Turning Radius from Center - Coupler 45.6 in
Turning Radius from Center - Machine Rear 57.4 in
Vehicle Width (320 mm/12.6 in tracks) 66 in
Vehicle Width (400 mm/15.7 in tracks) 69.1 in
Hydraulic System
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) 50.9 HP
Hydraulic Flow - High Flow - Loader Hydraulic Flow 26 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure 3336 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated) 35.5 HP
Hydraulic Flow - Standard - Loader Hydraulic Flow 18 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure 3336 psi
Power Train
Travel Speed - Forward or Reverse 7 mile/h
Service Refill Capacities
Cooling System 3.2 gal (US)
Engine Crankcase 2.6 gal (US)
Fuel Tank 15.1 gal (US)
Hydraulic System 11.9 gal (US)
Hydraulic Tank 9 gal (US)
Noise Level
Inside Cab** 83 dB(A)
Outside Cab*** 103 dB(A)

Features

Comfortable Cab

Comfortable Cab
Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility. Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D Series the industry leader in operator comfort.

Advanced Display

Advanced Display
Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Powerful Performance

Powerful Performance
High performance power train provides maximum performance and production capability through the Electronic Torque Management system and an electronic hand/foot throttle with decel pedal capability. High Flow hydraulic system is available for applications that demand maximum hydraulic work tool performance. Electronically controlled Cat C2.2 engine provides high horsepower and torque while meeting U.S. EPA Tier 4 Final (EU Stage IIIB) emission standards. Cat “Intelligent Leveling” system (ILEV) provides industry leading technology, integration and optional features such as dual direction self level, work tool return to dig and work tool positioner.

Suspended Undercarriage

Suspended Undercarriage
Standard fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort. Work in a broader range of applications with an optional wide bar-tread track that delivers better traction in snow, more flotation and less ground disturbance.

Outstanding Versatility

Outstanding Versatility
Broad range of performance matched Cat Work Tools make the Cat Compact Track Loader the most versatile machine on the job site.

Easy Service

Easy Service
Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
