Cat D9T

Large Dozers

About the Cat D9T



The Cat D9T has a reputation for outstanding productivity, operator comfort, and robust reliability. It is a highly versatile machine flexible enough to be used in heavy construction, quarries, landfills, forestry, and mine sites. Cat customers can count on the D9T's continued legacy of superior performance, long life, ease of operation and world-class service from the global Cat dealer network to be the backbone of their operation.

Specifications

Engine
Flywheel Power 325 kW
Emissions U.S. EPA Tier 4 Final and EU Stage IV
Engine - U.S. EPA Tier 4 Final/EU Stage IV
Engine Model (1) Cat® C18 ACERT™
Net SAE J1349/ISO 9249 325 kW
Bore 145 mm
Displacement 18.1 l
Engine Model (2) Cat C18 ACERT
Engine Power - Gross SAE J1995* 350 kW
Engine Power - ISO 14396 343 kW
Engine Power - Net Power SAE J1349/ISO 9249 325 kW
Note *Excludes all fan losses.
Stroke 183 mm
Weights
Operating Weight 48361 kg
Shipping Weight 36316 kg
Dimensions
Drawbar Height (Center of Clevis)* 763 mm
Ground Clearance* 596 mm
Height - FOPS Cab* 3820 mm
Height - ROPS/Canopy* 4000 mm
Height - Top of Stack* 3997 mm
Length - Basic Tractor - With Drawbar 5180 mm
Length - Basic Tractor - With Winch 5545 mm
Length - With Multi-Shank Ripper 6538 mm
Length - With SU-Blade** 6880 mm
Length - With Single-Shank Ripper 6529 mm
Length - With U-Blade 6967 mm
Overall Length - Basic Tractor 4910 mm
Overall Length - SU-Blade/SS Ripper 8230 mm
Track Gauge 2250 mm
Width - Over Trunnions 3300 mm
Width - Without Trunnions - Standard Shoe 2880 mm
Length - Track on Ground 3470 mm
Note (1) *Includes grouser height for total dimensions on hard surfaces.
Note (2) **Includes drawbar.
Transmission
1 Forward 3.9 km/h
2 Forward 6.8 km/h
3 Forward 11.7 km/h
1 Reverse 4.7 km/h
2 Reverse 8.4 km/h
3 Reverse 14.3 km/h
1 Forward - Drawbar Pull 716500 N
2 Forward - Drawbar Pull 400500 N
3 Forward - Drawbar Pull 222500 N
Hydraulic Controls
Pump Type Piston-type pump geared from flywheel
Pump Output - Steering 387 l/min
Pump Output - Implement 226 l/min
Tilt Cylinder Flow - Rod End Flow 140 l/min
Tilt Cylinder Flow - Head End Flow 188 l/min
Tilt Cylinder Relief Valve Setting 19300 kPa
Ripper - Lift - Relief Valve Setting 26200 kPa
Ripper - Pitch - Relief Valve Setting 26200 kPa
Tank Capacity 89 l
Lift Cylinder Relief Valve Setting 26200 kPa
Steering System - Pressure 40500 kPa
Undercarriage
Shoe Type Extreme Service
Width - Shoe 610 mm
Shoes/Side 43
Grouser Height 84 mm
Pitch 240 mm
Ground Clearance 596 mm
Track Gauge 2250 mm
Length - Track on Ground 3470 mm
Ground Contact Area 4.24 m²
Track Rollers/Side 8
Number of Carrier Rollers 1 per side (optional)
Service Refill Capacities
Fuel Tank 821 l
Cooling System 98 l
Engine Crankcase* 37 l
Power Train 164 l
Final Drive - Each 15 l
Roller Frames - Each 45 l
Pivot Shaft Compartment 30 l
DEF Tank 36 l
Hydraulic Tank Oil - Only 89 l
Note *With oil filters.
Winches
Winch Model PA 140VS
Weight* 1790 kg
Oil Capacity 15 l
Increased Tractor Length 557 mm
Drum Width 320 mm
Note *Weight shown is base winch only. Does not include mounting arrangement, control arrangement, oil, or wire rope. With counterweight: 3700 kg (8,150 lb).
Maximum Drum Capacity - Optional Cable Length 62 m
Maximum Drum Capacity - Recommended Cable Length 78 m
Wire Cable Diameter - Optional 32 mm
Wire Cable Diameter - Recommended 28 mm
Wire Cable Ferrule Size - Length 70 mm
Wire Cable Ferrule Size - Outside Diameter 60 mm
Standards
FOPS FOPS (Falling Object Protective Structure) meets ISO 3449:2005 Level II.
ROPS ROPS (Rollover Protective Structure) offered by Caterpillar for the machine meets ROPS criteria SAE J1040 May 94, ISO 3471:1994.

Features

MOVE with MORE RESPONSIBILITY

MOVE with MORE RESPONSIBILITY
Meeting regulations is very important for your business. The D9T is powered by Cat C18 engine with ACERT Technology – which meet today's most stringent emissions standards and are poised to take on tomorrow's challenges as well. Power through tough materials with full rated net power of 436 horsepower at 1,800 rpm.
C10331589

MOVE with MORE RELIABILITY

MOVE with MORE RELIABILITY
You can't afford to have operators not dozing. Helping you get more done with maximum availability, the D9T's durable design makes repair and maintenance easy. You can rebuild these dozers several times using the same frame with only minor repairs. It's not unusual for a Cat dozer to log more than 100,000 hours. The backbone of the dozer is a heavy, strong and durable frame with high-strength steel castings and continuously rolled top and bottom frame rails. The D9T frame provides durable support to the undercarriage, elevated final drives and other components.
C10331588

Modular Design

Modular Design
Mechanical availability is one of your top concerns. The D9T reduces downtime by making our machines easy to repair and maintain. Major components are modular in design, so most can be removed and reinstalled without disturbing other systems – which allows the D9T back on the job faster.
C10331587

MOVE with MORE CONFIDENCE

MOVE with MORE CONFIDENCE

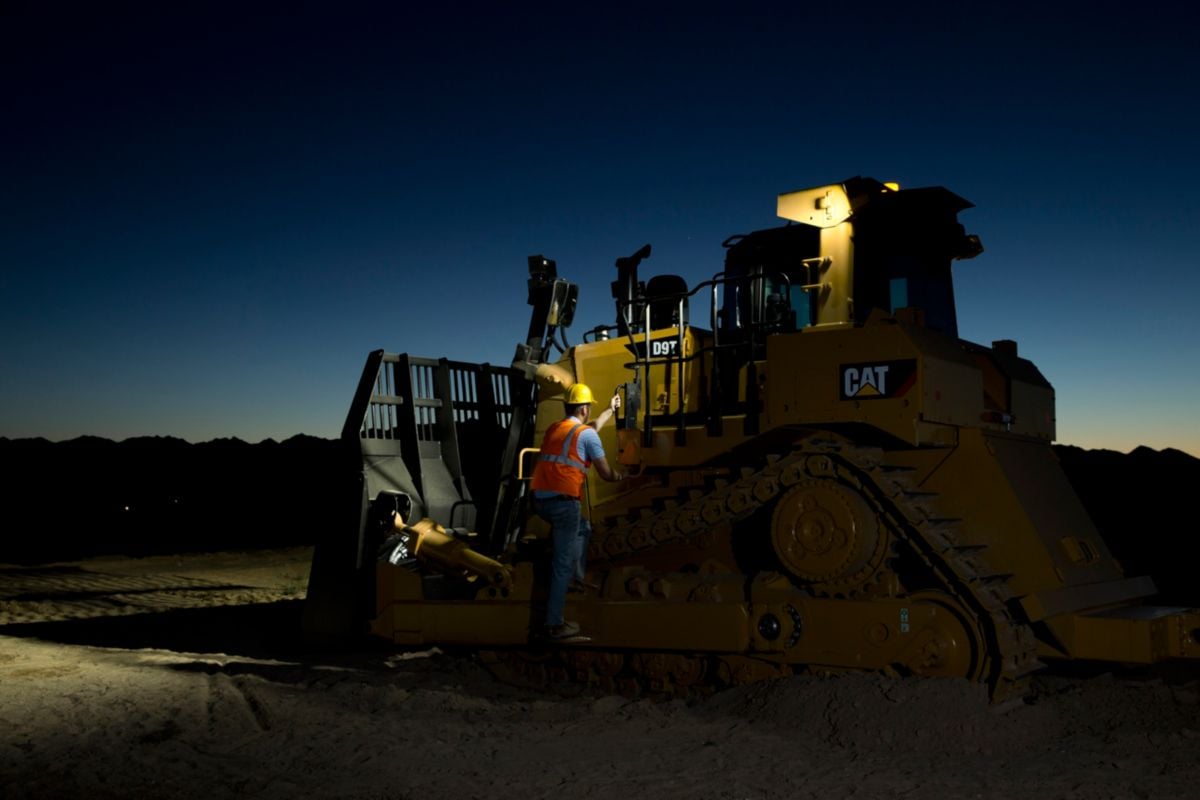

You consider the safety of your workers a top priority, and we're doing our best to help you meet your safety goals. Caterpillar considers the safety of everyone in, on or around Cat equipment when developing new products or enhancing safety features for existing products. The D9T has numerous safety features such as but not limited to:
  • Access / Egress Lighting
  • Visibility Arrangements
  • Push-arm Grab Handle, Steps and Guardrails
  • Anchorage Points
  • Operator Not Present Monitoring System
C10292497

MOVE with MORE VERSATILITY

MOVE with MORE VERSATILITY
Every day you are focused on productivity and cost per unit for increased profitability. With the D9T fully suspended undercarriage you will get more cycles per day. Every additional cycle you get because of the smooth ride means increased production and lower cost per unit of material moved. The elevated sprocket and suspended undercarriage work together, increasing traction and giving the operator a smoother ride. The elevated sprocket design transfers implement shock loads to the mainframe, so final drives, axles and steering components are isolated from harsh impacts. These benefits translate into higher production and longer component life.
C10331585

MOVE with MORE EFFICIENCY

MOVE with MORE EFFICIENCY

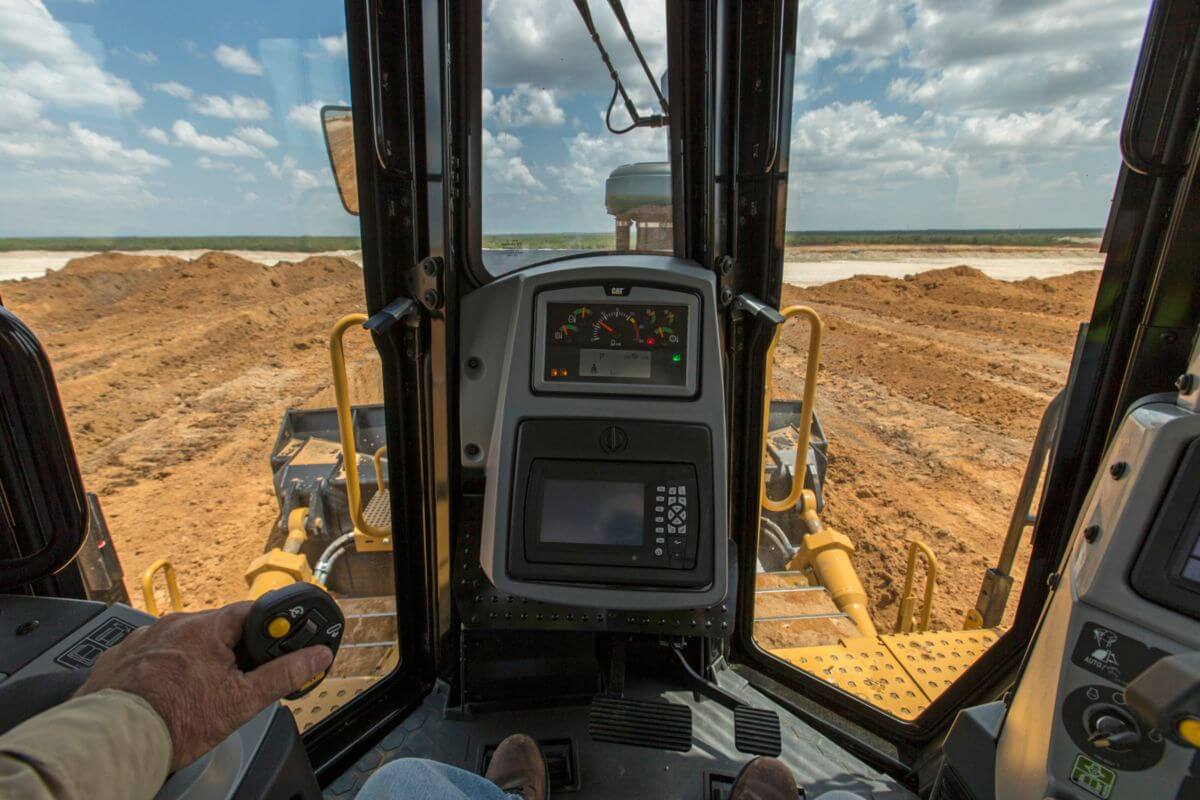

Productive operations begin with a productive operator. Noise, stress and fatigue all have an effect on operator performance – so we've designed an environment that helps minimize them. Within the D9T the operator environment is more than a cab; it's an integrated electronic platform designed to maximize productivity. The new Information Display screen is larger, faster and more powerful with increased memory and intuitive menu structure.
C835438

MOVE with MORE INTELLIGENCE

MOVE with MORE INTELLIGENCE
You expect advanced solutions for improved uptime and performance. Several electronic features have been integrated into the D9T to help a less skilled operator become better and obtain the most out of the machine to help reduce operator fatigue and get more done at a lower cost per unit of material moved. The D9T has several electronic options including but not limited to:
  • Automated Blade Assist
  • Autocarry
  • Adaptive Load Select
  • Automatic Ripper Control
  • Cat Grade Control 3D
C834786

Cat MineStar System

Cat MineStar System
Cat MineStar System is an integrated suite of mine operations and mobile equipment management technologies. Customers can configure the optional sets: Fleet, Terrain, Detect, Health and Command – to manage multiple operations and gather real-time feedback to enhance safety, productivity and efficiency.
C666111

MOVE with MORE SUPPORT

MOVE with MORE SUPPORT
Your Cat dealer knows how to keep your machines moving. We've built an extensive network of nearly 200 locally owned businesses in over 200 countries. So wherever you operate, there is a dealer nearby to provide world-class service and support for your Cat equipment.
C807615
