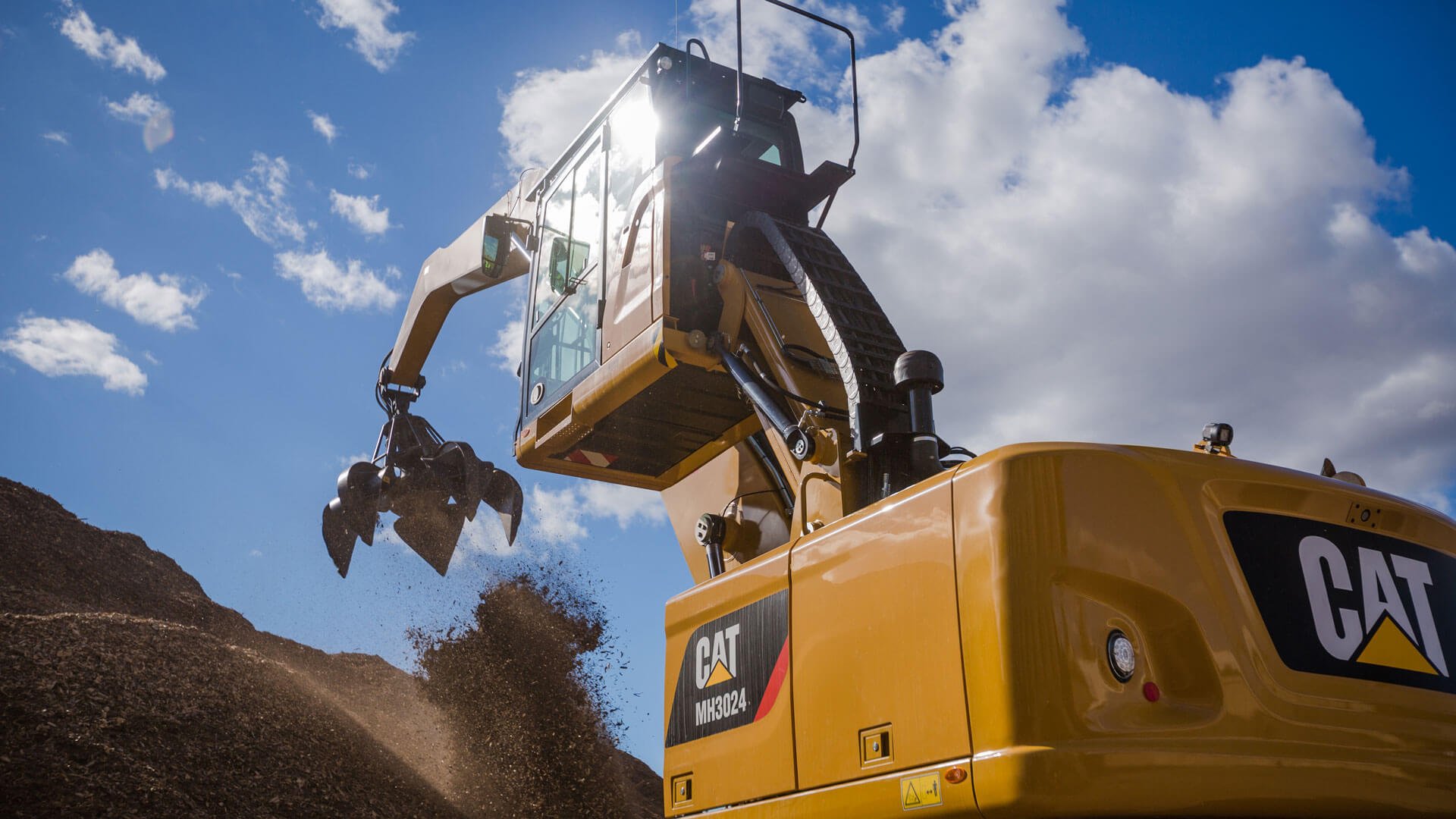

Cat MH3024 Wheel Material Handler

Wheel Material Handlers

About the Cat MH3024 Wheel Material Handler



We know that when it comes to material handling equipment, your success depends on productivity and low operating costs. The MH3024 is a purpose-built material handler, designed for industrial and recycling applications that call for safe, quality and reliable products. The MH3024 takes on the MH3022 for all industrial applications where there are no space constraints.

Specifications

Weights
With MH Boom (6400 mm/20'1") - MH 2.75 m/9'0" Undercarriage and Straight Stick 53055 lb
With MH Boom (6400 mm/20'1") - MH 2.99 m/9'6" Undercarriage and Drop Nose Stick 52382 lb
With MH Boom (6400 mm/20'1") - MH 2.99 m/9'6" Undercarriage and Straight Stick 53275 lb
Key Components - Drop Nose Stick 4900 mm/16'1" 1951 lb
Key Components - MH Blade 1555 lb
Key Components - Straight Stick 4200 mm/13'9" 2899 lb
With MH Boom (6400 mm/20'1") - MH 2.75 m/9'0" Undercarriage and Drop Nose Stick 52162 lb
With One-Piece Boom - MH 2.75 m/9'0" Undercarriage and Industrial Stick 50597 lb
With VA Boom - MH 2.75 m/9'0" Undercarriage and 2800 mm/9'2" Digging Stick 52481 lb
Swing Mechanism
Swing Speed 8.5 r/min
Maximum Swing Torque 39828 ft·lbf
Service Refill Capabilities
Cooling System 12.3 gal (US)
Diesel Exhaust Fluid Tank 9.1 gal (US)
Fuel Tank 87 gal (US)
Hydraulic System Capacity 66.8 gal (US)
Hydraulic Tank Capacity 40.4 gal (US)
Undercarriage
Axle Clearance - All MH Undercarriages 12.8 in
Transmission
Maximum Travel Speed 16 mile/h
Creeper Speed - 2nd Gear 6.2 mile/h
Maximum Travel Speed - 2nd Gear 16 mile/h
Engine
Displacement 427.8 in³
Bore 4.1 in
Maximum Torque - 1,400 rpm 612 ft·lbf
Stroke 5.3 in
Hydraulic System - Maximum Flow
Auxiliary Circuit - High Pressure 66 gal/min
Auxiliary Circuit - Medium Pressure 13 gal/min
Implement/Travel Circuit 76 gal/min
Swing Mechanism 28.5 gal/min
Hydraulic System - Maximum Pressure
Auxiliary Circuit - High Pressure 5076 psi
Auxiliary Circuit - Medium Pressure 3046 psi
Swing Mechanism 4496 psi
Travel Circuit 5076 psi
Maximum Dimensions - Approximate
Maximum Shipping Height 11.92 ft
Maximum Shipping Width 9.83 ft
Working Ranges - Without Work Tool: MH Boom (6.40 m/20'1"); Stick Length (4200 mm/13'9")
Maximum Depth 4.83 ft
Maximum Height 37.75 ft
Maximum Reach 33.92 ft
Working Ranges - Without Work Tool: MH Boom (6.40 m/20'1"); Stick Length (4900 mm/16'1")
Maximum Depth 7.17 ft
Maximum Height 39 ft
Maximum Reach 36.08 ft
Working Ranges - without Work Tool: One-Piece Boom; Stick Length (3300 mm/10'10")
Maximum Depth 17.17 ft
Maximum Height 24.25 ft
Maximum Reach 27.75 ft
Working Ranges - without Work Tool: VA Boom; Stick Length (2800 mm/9'2")
Maximum Depth 15.67 ft
Maximum Height 28.58 ft
Maximum Reach 26.92 ft

Features

Performance

Performance
  • Powerful and efficient – Cat® C7.1 ACERT™ engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
  • Dedicated swing pump allows faster and smoother combined movements.
  • Efficient hydraulic system provides precision and speed, while preserving fuel consumption.
  • Stability and increased lifting capacities over the rear thanks to the new 2.75 m (9'0") MH symmetric undercarriage.

Efficiency

Efficiency
  • Fuel consumption reduced up to 10%*, with no impact on your productivity to lower operating costs.
  • Built-in fuel savers eliminate waste thanks to Auto Engine Speed Control, Engine Idle Shutdown and enhanced Eco Mode.
  • High cooling efficiency axial fan keeps operating temperatures and costs low.
*Versus previous D MH Series.

Safety

Safety
  • Blue Angel certified with low vibrations and sound levels.
  • Options for specific applications – Thicker high impact and impact resistant windshields fulfill respectively the EN356 P8B and P5A standards. The Advanced Cab Filtration system almost completely eliminates dust entry and air contamination.
  • Great visibility – Large glass areas, LED lights for all working lights and cameras, with both displays split on the same screen.
  • Direct access to the cab is possible with the upperframe swinged thanks to new steps on the front and rear of the undercarriage.

Ease of Operation

Ease of Operation
  • Enjoy integrated technologies – They act transparently. Features like the Auto Brake and Axle Lock or Automatic Travel lock remove some of the tasks you had to do.
  • Smart technologies – They help boost your productivity while making operation easier; try the optional SmartBoom™ or Joystick steering.
  • Our cabs are unique – It's a cab just for you where everything can be adjusted, from the seat to the work tools controls assignment on joysticks and pedal.

Maintenance

Maintenance
  • Ground level access for routine maintenance items like fuel and engine oil filters or fluid taps.
  • Reduced maintenance – Automatic features like electric lift pump and lubrication system along with long greasing intervals.

Versatility

Versatility
  • Various configurations – A wide choice of front linkage lengths including digging, straight and drop nose sticks with a reach up to 10.8 m (35'7") at ground level.
  • Increase your efficiency with the front push blade to clear the ground from materials commonly encountered in industrial applications.
  • Various Waste Handling (WH) Packages options – The “fine mesh” package protects the cooling hood from dust and includes an engine air precleaner. The adjustable reversing fan and vibrating grill of the WH package add more protection.
  • Various attachments to tackle all kinds of jobs, from various grapple types to the 15 kW Cat Generator.

Cat Connect Technology

Cat Connect Technology
  • Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes.
