Cat 914M Compact Wheel Loader

Compact Wheel Loaders

About the Cat 914M Compact Wheel Loader



914M Compact Wheel Loader

Specifications

Engine
Net Power 97 HP
Engine Model Cat C4.4 ACERT�
Maximum Gross Power - ISO 14396 100 HP
Maximum Gross Power - ISO 14396 (DIN) 101 HP
Maximum Gross Power - Maximum Engine Speed 2350 r/min
Maximum Gross Power - SAE J1995 102 HP
Rated Net Power - Rated Engine Speed 2200 r/min
Rated Net Power - SAE J1349 96 HP
Maximum Gross Power 100 HP
Bore 4.13 in
Displacement 268 in³
Emissions Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Maximum Gross Torque - ISO 14396 332 ft·lbf
Maximum Gross Torque - SAE J1995 336 ft·lbf
Maximum Net Torque - ISO 9249 329 ft·lbf
Maximum Net Torque - SAE J1349 325 ft·lbf
Note Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Rated Net Power - ISO 9249 97 HP
Rated Net Power - ISO 9249 (DIN) 98 HP
Stroke 5 in
Weights
Operating Weight 19315 lb
Service Refill Capacities
Cooling System 5.7 gal (US)
Fuel Tank 40.7 gal (US)
Engine Crankcase 2.3 gal (US)
Hydraulic System - Including Tank 25.9 gal (US)
Axles - Front Center Differential 2 gal (US)
Axles - Rear Center Differential 2 gal (US)
Diesel Exhaust Fluid (DEF) Tank 5 gal (US)
Hydraulic Tank 14.5 gal (US)
Note DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Transmission 0.9 gal (US)
Operating Specifications
Rated Bucket Capacity 2.5 yd³
Buckets
Bucket Capacities 1.3-1.9 m3 (1.7-2.5 yd3)
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level II
Note (1) Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2) The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 77 dB(A).
Note (3) The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 103 dB(A).
Note (4) *The measurements were conducted with the cab doors and windows closed.
Axles
Front Fixed; Locking differential (standard)
Rear Oscillating �11 degrees; Locking differential (Standard)
Loader Hydraulic System
Hydraulic Cycle Time - Dump, at Maximum Reach 1.4 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level 3.7 s
Hydraulic Cycle Time - Rackback 2.2 s
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift 5.2 s
Hydraulic Cycle Time - Total Cycle Time 12.5 s
Maximum Flow - Implement Pump 39 gal/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High 32 gal/min
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard 24 gal/min
Maximum Flow - Implement Pump - 4th Function, Maximum Flow 24 gal/min
Maximum Working Pressure - Implement Pump 4061 psi
Relief Pressure - Tilt Cylinder 4931 psi
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure 3046 psi
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure 3046 psi
Steering
Maximum Flow - Steering Pump 22 gal/min
Maximum Working Pressure - Steering Pump 3263 psi
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.75 turns
Steering Articulation Angle - Each Direction 40 °
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed 2.8 s
Tires
Note (1) Other tire choices are available. Contact your Cat dealer for details.
Note (2) In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
Note (3) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Other Choices Include 17.5-25 12PR L2; 17.5-R25 XHA * L3; 17.5-R25 * L2/L3 PC RM; 17.5-25 16PR L3, 3PC Rim; 17.5-25 GY L2/L3; 17.5-25 12PR L2, SNOW; Flexport�
Standard Size 17.5-25 12PR
Transmission
Forward and Reverse - High Range 25 mile/h
Forward and Reverse - Low Range, Speed Range 1* 6.3 mile/h
Forward and Reverse - Low Range, Speed Range 2* 12.5 mile/h
Note *Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.

Features

Optimized Z-bar Loader Linkage

Optimized Z-bar Loader Linkage
The Cat Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control.

Work Tools

Work Tools
The 914M features the Cat exclusive, Performance Series Buckets, as well as high visibility pallet forks. These tools enhance productivity and are available with either an Integrated Toolcarrier (IT) or ISO (wide) coupler style. Legacy coupler tools such as brooms, grapple buckets, multi-purpose buckets and other work tools remain compatible.

Hydraulic and Controls

Hydraulic and Controls
State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application.

Tuned Drivetrain

Tuned Drivetrain
Smooth shifting and powerful acceleration is matched with modulated hydrostatic braking in the inching/braking pedal, creating a rhythm for material moving. Creeper and electronic engine speed control makes broom and snow blower work easy. Operator tunes between smooth or aggressive shifting with the push of a button.

Cab

Cab
All around visibility is further enhanced with the availability of a rearview camera. The deluxe cab ensures operator comfort with a heated, air suspension seat and easy to use controls. Available features such as Implement and Hystat Aggressiveness, Ride Control, Lift and Tilt Kickouts, Engine Speed Control and Rimpull Control allow the operator to customize the machine via a soft touch keypad.

Serviceability

Serviceability
Extended service intervals and excellent service access make daily checks quick and easy allowing you to get to work sooner.

Efficiently Powerful

Efficiently Powerful
High full turn tipping loads, powerful breakout forces and increased engine power the M Series delivers a balanced solution for all customer applications.

Standard Fuel Savings

Standard Fuel Savings
Features such as Eco Mode, On Demand Cooling Fan and Auto Engine Idle Shutdown make the 914M both powerful and fuel efficient.

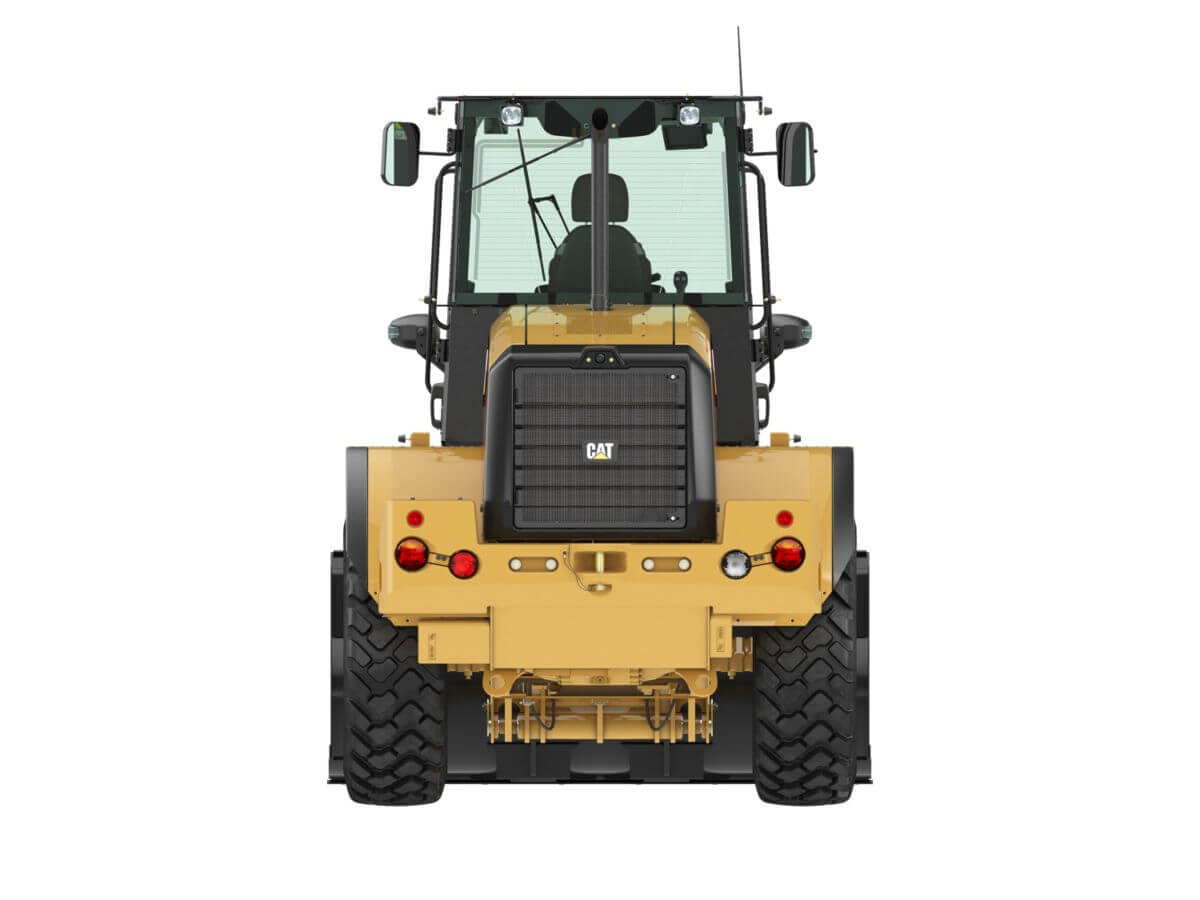

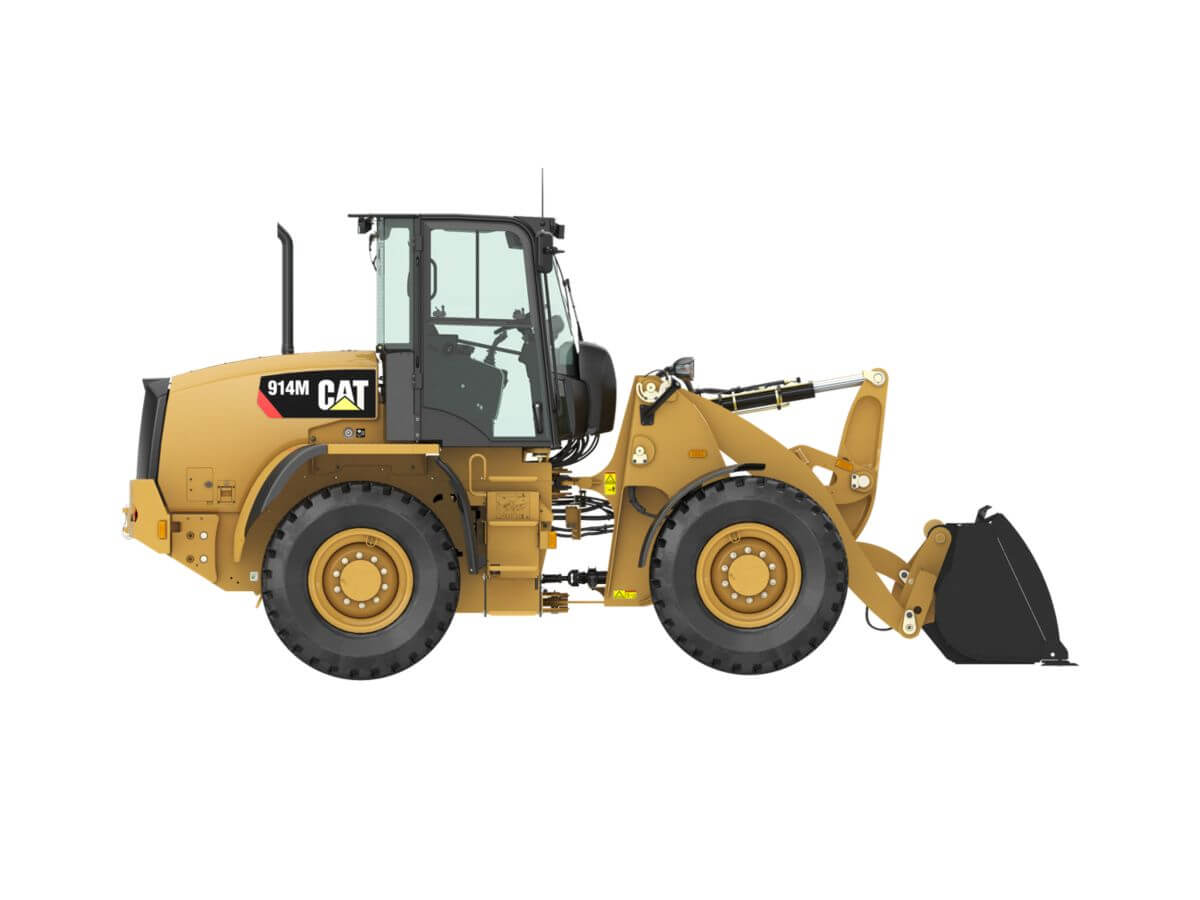

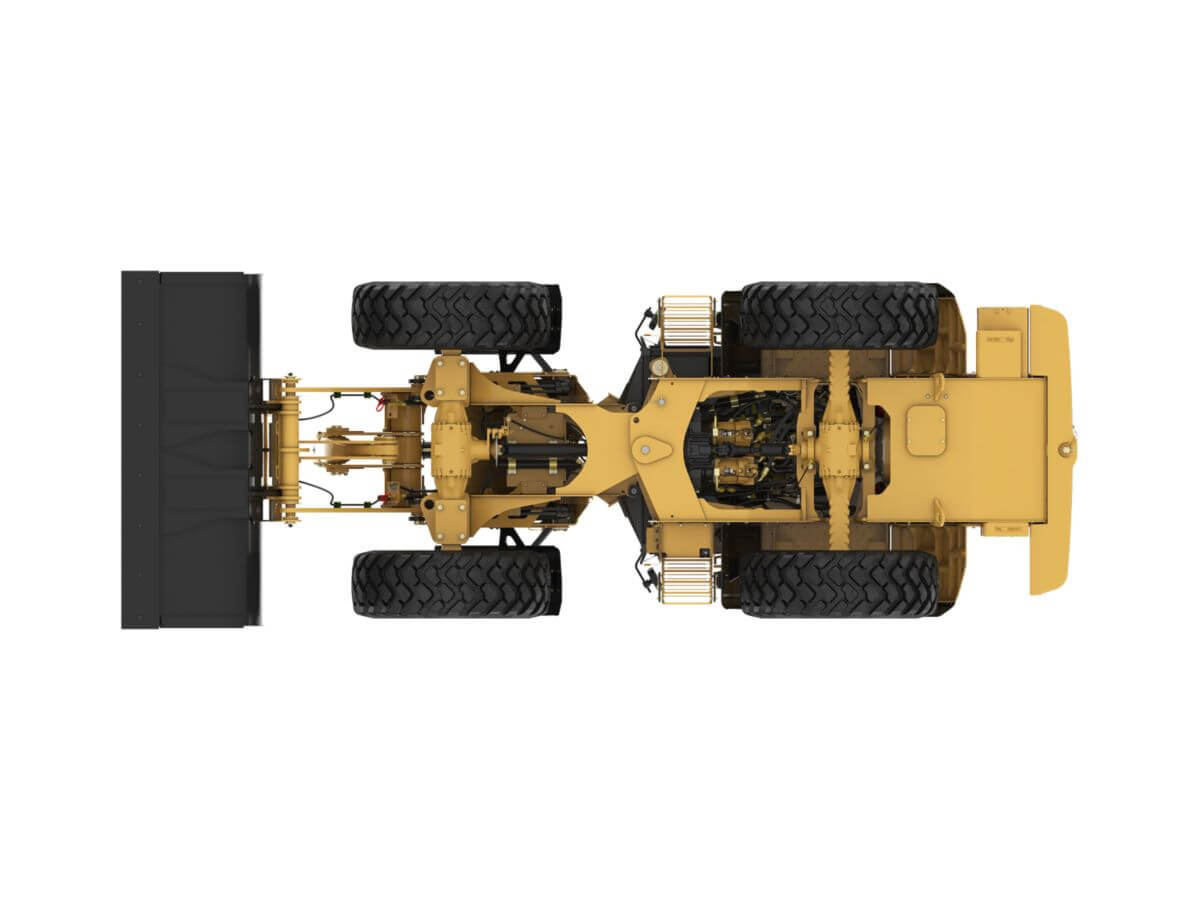

View product in 360°
