Cat 950M Medium Wheel Loader

Medium Wheel Loaders

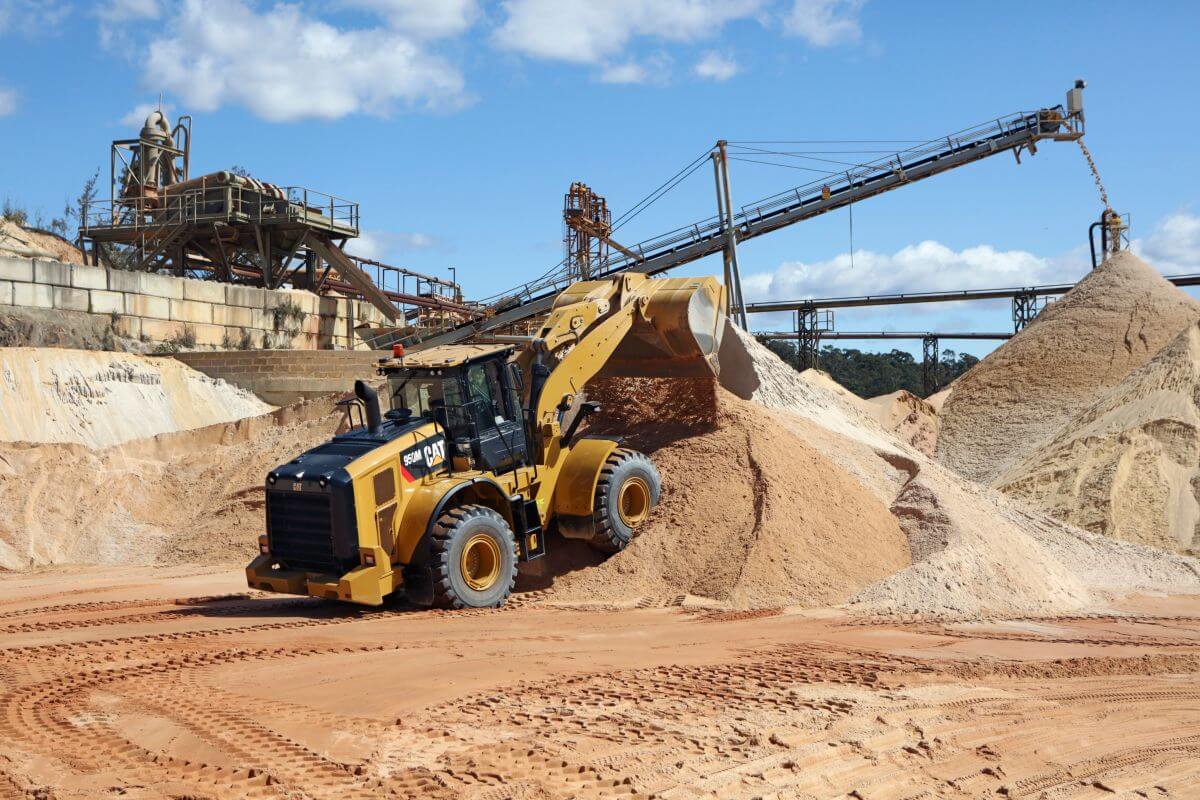

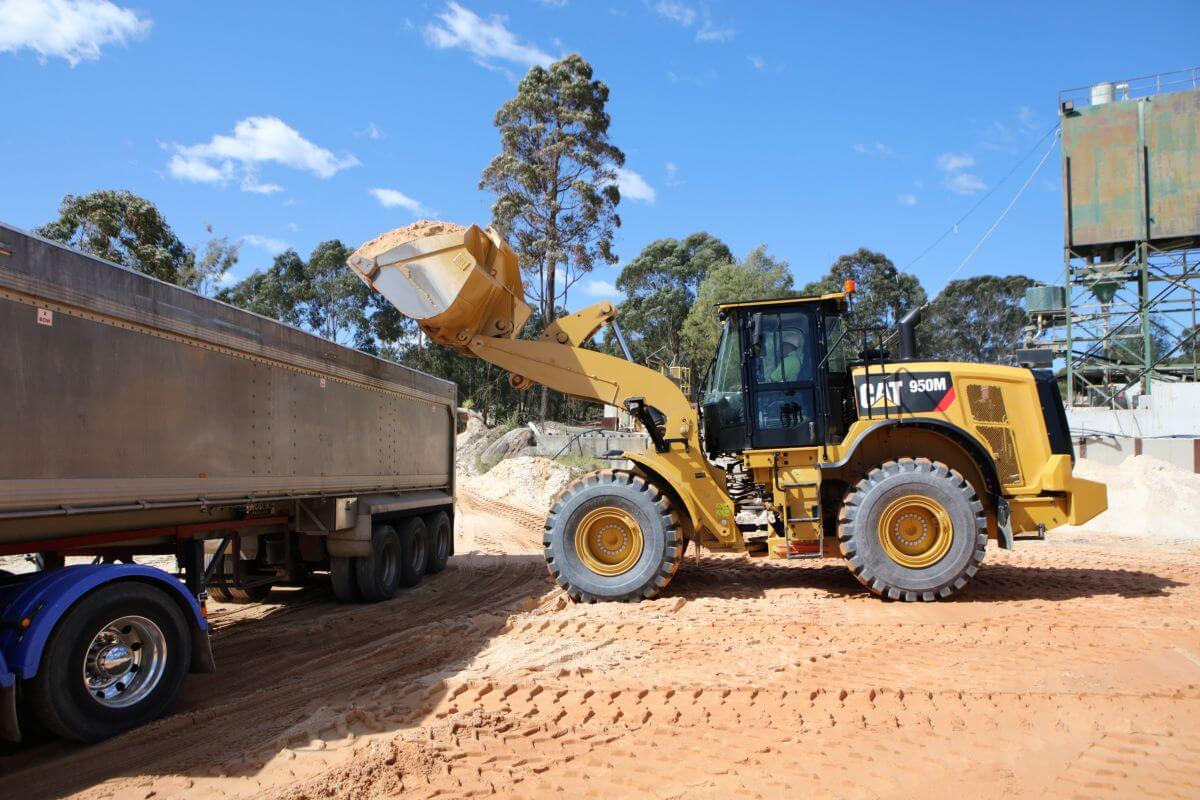

About the Cat 950M Medium Wheel Loader



The 950M Wheel Loader is equipped with built-in proven technologies to help meet your expectations for productivity and fuel efficiency. This wheel loader offers a standard lock up clutch torque converter, standard manual front locking differential axles, and improved standard ride control to significantly improve your fuel economy, performance and ergonomics. This machine delivers the reliability, durability, and versatility you’ve come to expect from a Cat machine.

Specifications

Engine
Emissions Tier 4/Stage IV
Displacement 428 in³
Engine Model Cat C7.1 ACERT
Maximum Net Power - 2,100 rpm - ISO 9249 230 HP
Maximum Net Power - 2,100 rpm - ISO 9249 - Metric 232 HP
Maximum Net Power - 2,100 rpm - SAE J1349 230 HP
Maximum Net Torque - 1,300 rpm 858 ft·lbf
Maximum Power - 2,100 rpm - ISO 14396 249 HP
Maximum Power - 2,100 rpm - ISO 14396 - Metric 253 HP
Maximum Power - 2,100 rpm - SAE J1995 250 HP
Net Power - ISO 9249 230 HP
Note The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
Peak Gross Torque - 1,300 rpm - ISO 14396 908 ft·lbf
Peak Gross Torque - 1,300 rpm - SAE J1995 911 ft·lbf
Engine - Tier 4 Final/Stage IV
Emissions Tier 4/Stage IV
Weights
Operating Weight 42357 lb
Note Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, manual diff lock/open axles (front/rear), power train guard, secondary steering,
Buckets
Bucket Capacities 2.5-9.2 m³ (3.3-12.0 yd³)
Bucket Capacities
Bucket Range 2.5-9.2 m³ (3.3-12.0 yd³)
Dimensions
Centerline of Rear Axle to Edge of Counterweight 76 in
Centerline of Rear Axle to Hitch 66 in
Ground Clearance 14 in
Height - Top of Exhaust Pipe 90 in
Height - Top of Hood 106 in
Height - Top of ROPS 92 in
Hinge Pin Height at Carry Height 25 in
Hinge Pin Height at Maximum Lift 159 in
Maximum Width over Tires (loaded) 111 in
Note All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Overall Length (without bucket) 272 in
Tread Width 84 in
Wheel Base 132 in
Dimensions - High Lift
Centerline of Rear Axle to Edge of Counterweight 6.33 ft
Centerline of Rear Axle to Hitch 5.5 ft
Ground Clearance 1.17 ft
Height - Top of Exhaust Pipe 11.17 ft
Height - Top of Hood 8.83 ft
Height - Top of ROPS 11.33 ft
Hinge Pin Height at Carry Height 2.58 ft
Hinge Pin Height at Maximum Lift 14.83 ft
Lift Arm Clearance at Maximum Lift 11.92 ft
Maximum Width - Over Tires - Loaded 9.25 ft
Note All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Overall Length - Without Bucket 24.58 ft
Rack Back - Carry Height 49 degrees
Rack Back - Maximum Lift 59 degrees
Rack Back at Ground 40 degrees
Tread Width 7 ft
Wheel Base 11 ft
Dimensions - Standard Lift
Centerline of Rear Axle to Edge of Counterweight 6.33 ft
Centerline of Rear Axle to Hitch 5.5 ft
Ground Clearance 1.17 ft
Height - Top of Exhaust Pipe 11.17 ft
Height - Top of Hood 8.83 ft
Height - Top of ROPS 11.33 ft
Hinge Pin Height at Carry Height 2.08 ft
Hinge Pin Height at Maximum Lift 13.25 ft
Lift Arm Clearance at Maximum Lift 10.75 ft
Maximum Width - Over Tires - Loaded 9.25 ft
Note All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
Overall Length - Without Bucket 22.67 ft
Rack Back - Carry Height 49 degrees
Rack Back - Maximum Lift 59 degrees
Rack Back at Ground 36 degrees
Tread Width 7 ft
Wheel Base 11 ft
Hydraulic System
Hydraulic Cycle Time - Total 8.9 s
Implement Pump Type Variable Axial Piston
Implement System - Maximum Operating Pressure 4250 psi
Implement System - Maximum Pump Output at 2,150 rpm 76 gal/min
Operating Specifications
Breakout Force 40690 lbf
Note (1) For a machine configuration as defined under ?Weight.?
Note (2) Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Static Tipping Load - Full 40° Turn - No Tire Deflection 25926 lb
Static Tipping Load - Full 40° Turn - With Tire Deflection 24262 lb
Service Refill Capacities
Cooling System 15.6 gal (US)
Crankcase 5.8 gal (US)
DEF Tank 4.2 gal (US)
Differential - Final Drives - Front 11.4 gal (US)
Differential - Final Drives - Rear 11.4 gal (US)
Fuel Tank 72.6 gal (US)
Hydraulic Tank 33 gal (US)
Transmission 11.4 gal (US)
Sound
Note (1) *Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Note (2) **For machines in European Union countries and in countries that adopt the ?EU Directives.?
Note (3) ***European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.?
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)** 104 LWA***
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** 69 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) 107 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013) 75 dB(A)*
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) 70 dB(A)
Transmission
Forward - 1 4.3 mile/h
Forward - 2 7.5 mile/h
Forward - 3 12 mile/h
Forward - 4 16 mile/h
Forward - 5 24.5 mile/h
Note Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Reverse - 1 4.3 mile/h
Reverse - 2 7.5 mile/h
Reverse - 3 16 mile/h

Features

Reliability

Reliability
  • Cat® C7.1 ACERT™ engine and automatic Cat Regeneration System offers increased power density with a combination of proven electronic, fuel and air systems.
  • Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.

Durability

Durability

  • Tough countershaft powershift transmission and axles handle extreme applications.
  •
  • Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.
962M Medium Wheel loader Productivity

Productivity

Productivity

  • Engine power increased by approximately 16% improves machine performance and response (compared to H Series).
  •
  • Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.
  •
  • Optimized Z-bar linkage provides high breakout force at ground level along with excellent –0°/+5° parallelism for precise work tool control.
  •
  • Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.
  •
  • On-the-go disc-type front manual differential locks (front and rear fully automatic option).
  •
  • Optional auxiliary counterweight option offers slightly higher payload capability for loose aggregate rehandling.*
*Optional configurations and equipment may vary from region to region and requires conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.
950M Medium Wheel Loader Productivity

Fuel Efficiency

Fuel Efficiency

  • Up to 10% more fuel efficient than K Series and up to 25% more fuel efficient than H Series loaders.**
  •
  • Power dense ACERT engine burns less fuel by providing power and torque when needed.
  •
  • Standard productive Economy Mode provides maximum fuel savings with minimal productivity impact.
**Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.
962M Medium Wheel Loader Fuel Efficiency

Ease of Operation

Ease of Operation

  • Best-in-class operator environment provides unmatched comfort, visibility, and efficiency.
  •
  • Steering wheel (E-H joystick steering option).
  •
  • Intuitive, ergonomic controls and touch screen multifunction display keep operators focused on their work.
  •
  • Ride control system with dual accumulators provides excellent ride quality and lowers cab vibrations.
950M Medium Wheel Loader Ease of Operation

Safety

Safety

  • Excellent cab access with wide door, remote door opening option and stair-like steps.
  •
  • Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.
962M Medium Wheel Loader Safety

Serviceability

Serviceability

  • One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.
  •
  • Safe, ground level access to fuel fill and daily maintenance points means less servicing time is required.
  •
  • Optional, fully integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility.
950M Medium Wheel Loader Serviceability

Cat Connect Technology

Cat Connect Technology

  • Monitor, manage and enhance job site operations.
  •
  • Cat LINK Technologies: VisionLink® enables owners to access data wirelessly to monitor machine health, utilization and location.
  •
  • Cat DETECT Technologies: Integrated rear vision camera enhances visibility behind machine to help operators work safely. Optional Cat Rear Object Detection increases operator awareness of the working environment which enhances site safety.
  •
  • Cat PAYLOAD Technologies: Optional Cat Production Measurement 2.0 brings simple and accurate on-the-go payload scale allowing operators to deliver exact loads and work more efficiently. Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
962M Medium Wheel Loader Technology
