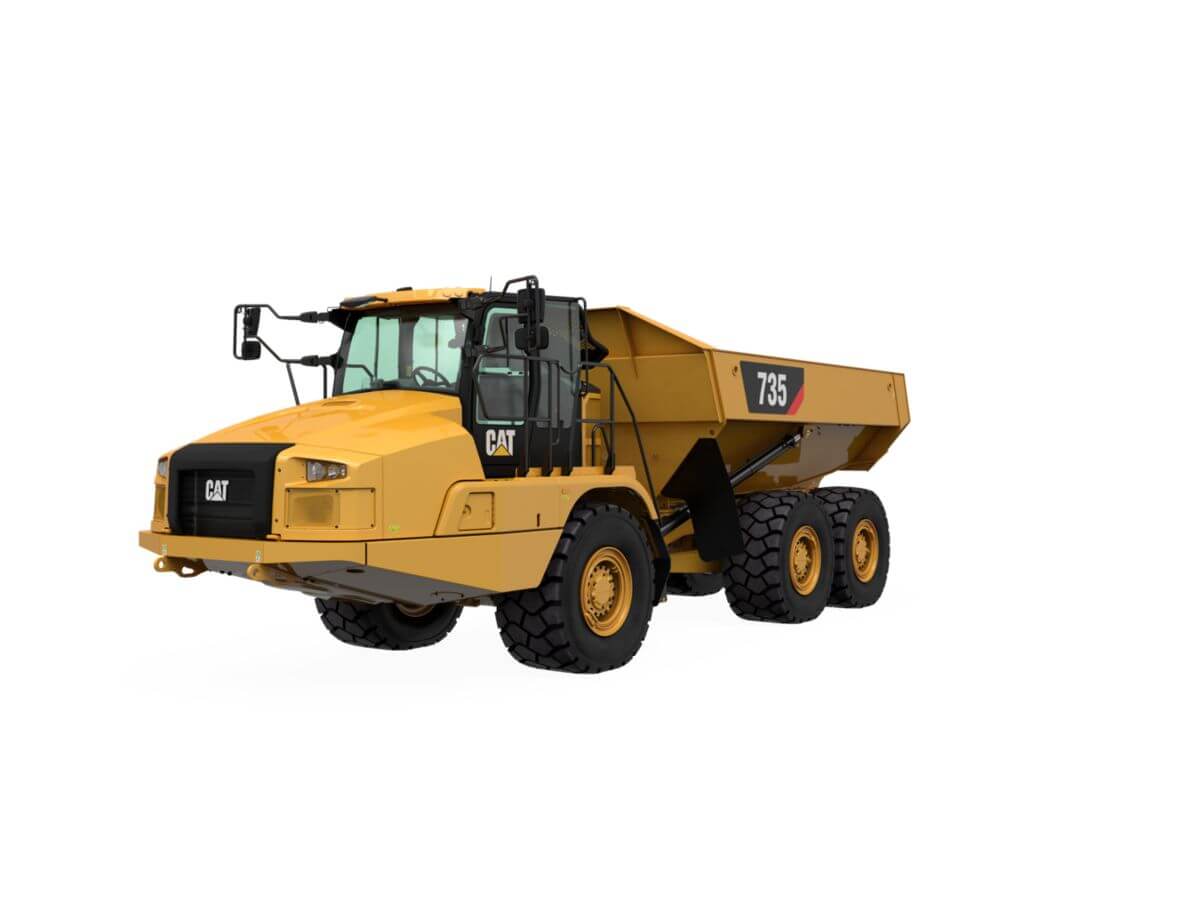

Cat 735

Articulated Trucks

About the Cat 735



The Cat® 735 features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.

Specifications

Engine
Engine Model Cat® C13
Bore 5.1 in
Stroke 6.2 in
Displacement 736 in³
Peak Engine Torque Net (SAE J1349) 1597 ft·lbf
Peak Engine Torque Speed 1200 r/min
Net Power - SAE J1349 424 HP
Emissions The 735 meets Tier 4 Final and Stage V emission standards.
Peak Engine Torque Gross (SAE J1995) 1614 ft·lbf
Note (3) The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
No Engine De-rating Below 12500 ft
Note (2) The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard.
Net Power - ISO 14396 429 HP
Gross Power - SAE J1995 434 HP
Note (5) DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certificatio
Note (4) Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions.
Note (1) The references to Tier 4 Final/Stage V include U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), and Korea Tier 4 Final emission standards.
Engine Model - U.S. EPA Tier 4 Final/EU Stage V Cat C13
Weights
Rated Payload 35.3 ton (US)
Body Capacities
Heaped (SAE 2:1) 26.2 yd³
Struck 20.3 yd³
Tailgate Heaped SAE 2:1 27.9 yd³
Tailgate Struck 21.3 yd³
Transmission
Forward - 1 5 mile/h
Forward - 2 9 mile/h
Forward - 3 14 mile/h
Forward - 4 22 mile/h
Forward - 5 30 mile/h
Forward - 6 35 mile/h
Reverse - 1 6 mile/h
Sound Levels
Interior Cab 72 dB(A)
Note (2) Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Note (1) The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the
Operating Weights
Total - Loaded 126192 lb
Front Axle - Empty 34128 lb
Total - Rated Load 70548 lb
Rear Axle - Loaded 41270 lb
Rear Axle - Empty 10516 lb
Center Axle - Empty 11001 lb
Center Axle - Rated Load 30754 lb
Front Axle - Loaded 43166 lb
Total - Empty 55645 lb
Front Axle - Rated Load 9039 lb
Rear Axle - Rated Load 30754 lb
Center Axle - Loaded 41756 lb
Service Refill Capacities
Fuel Tank 108.8 gal (US)
Cooling System 21.9 gal (US)
Hydraulic System 29.1 gal (US)
Engine Crankcase 10 gal (US)
Transmission 12.3 gal (US)
Final Drives/Differential 33 gal (US)
Output Transfer Gear Box 5.5 gal (US)
DEF Tank 5.3 gal (US)
Body Hoist
Raise Time 12 s
Lower Time 11 s
Steering
Lock to Lock 4.75 seconds @ 60 rpm
Standards
Brakes ISO 3450 – 2011
Cab - FOPS ISO 3449 Level II – 2005
Cab - ROPS ISO 3471 – 2008
Steering ISO 5010 – 2007
Body Plate
Type High strength Brinell HB450 wear resistant steel
Turning Circle
Turning Dimensions - SAE Turning Radius 294 in
Turning Dimensions - Inside Radius 149 in
Turning Dimensions - Clearance Radius 318 in
Note Dimensions are for machines equipped with 750/65 R25 tires.
Turning Dimensions - Steer Angle - Left/Right 45°
Turning Dimensions - Aisle Width 212 in
Optimal Loader/Truck Pass Matching
Hydraulic Excavators: 336F/336F XE - Passes 5–6
Note An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349F and 336F Hydraulic Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased
Hydraulic Excavators: 349F/349F XE - Passes 4–5
Wheel Loaders: 972M/972M XE - Passes 3–4
Wheel Loader: 962M - Passes 4–5
Wheel Loader: 950M - Passes 5
Wheel Loaders: 966M/966M XE - Passes 4
Body Plate Thickness
Base Plate 0.51 in
Front Plate 0.28 in
Side Plates 0.43 in

Features

MAXIMIZE PERFORMANCE

  • Every Tier 4 Final/Stage IV and EU Stage V Cat engine is equipped with a combination of proven electronic, fuel, air and aftertreatment components.
  • Maximized uptime and reduced cost with world-class support from the Cat dealer network.
  • Minimized impact of emission systems: designed to be transparent to the operator without requiring interaction.
  • Delivering better fuel economy with minimized maintenance costs while providing the same great power and response.
  • Advanced MEUI-C injector platforms deliver increased injection pressures and more precise fuel rates. These durable injectors enhance responsiveness while controlling soot.
  • All Cat engines feature innovative air-management systems that optimize airflow and enhance power, efficiency and reliability.
  • The Cat NOx Reduction System (NRS) captures and cools a small quantity of exhaust gas, then routes it back into the combustion chamber where it drives down combustion temperatures and reduces NOx emissions.
  • Cat engines equipped with a Selective Catalytic Reduction (SCR) system inject Diesel Exhaust Fluid (DEF) into the exhaust to reduce NOx emissions. DEF is a precisely mixed solution of 32.5 percent high purity chemical grade urea and 67.5 percent de-ionized water.

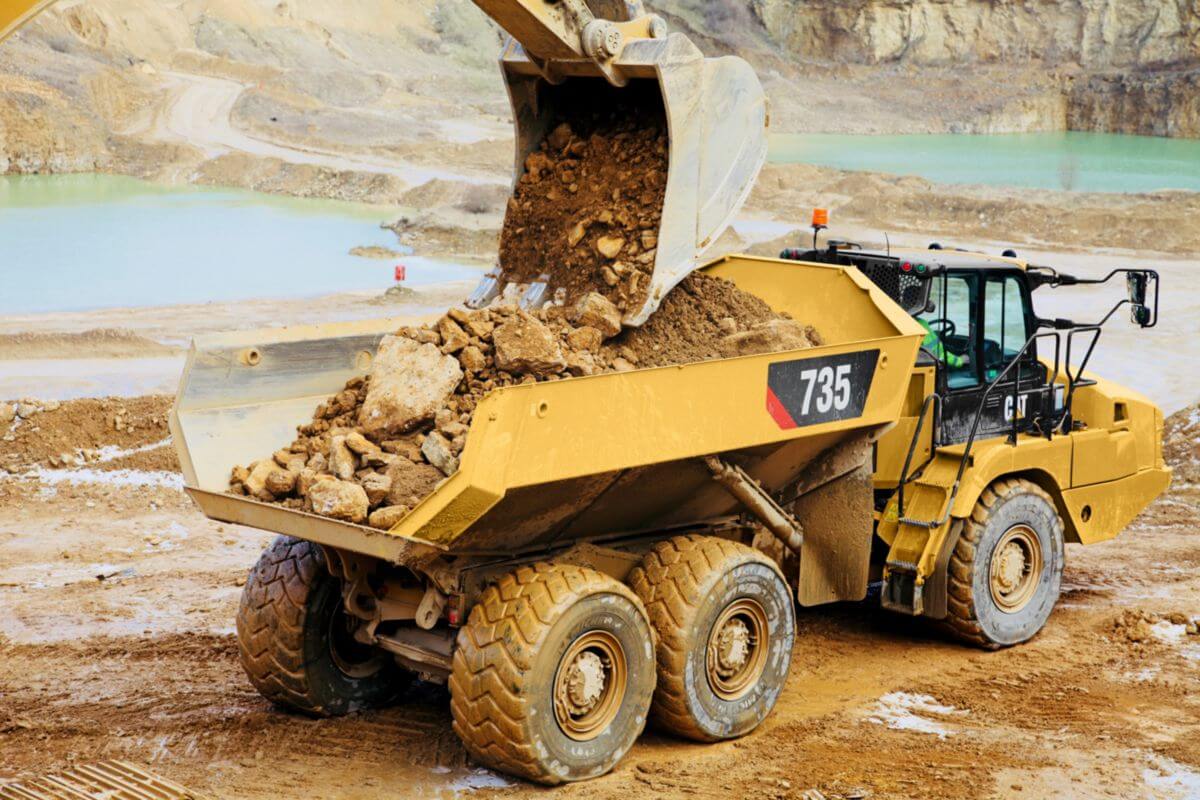

Cat 735 Articulated Haul Truck

AUTOMATIC CONTROLS

  • Advanced Automatic Traction Control (AATC) proactively applies inter- and cross-axle differential locks ‘on-the-go.’ Operators are freed from this function to concentrate on driving/loading/dumping. Sensors monitor the machine and wheel speeds, enabling instant response in high rolling resistance conditions. Operation is seamless and smooth, eliminating wheel slip for maximum traction and productivity.
  • Clutches are automatically disengaged when ground conditions allow, maximizing efficiency when steering or when on uneven ground.
  • AATC reduces tire and driveline abuse, eliminating lost machine efficiencies caused by improper manual operation of the differential clutches and reducing the tire wear.
  • Automatic Retarder Control (ARC) automates the retarder for the operator. Like AATC, a number of machine operating aspects are monitored. If required, the engine compression brake is engaged automatically to control machine speed when descending a grade. The system can help towards eliminating engine overspeed, improving safe machine operation and reducing cycle times, yet still having the flexibility of manual control if needed.
  • New Assisted Hoisting Control automates the dumping function. Flick the new body raise/lower switch and the machine will apply the service brakes, switch the transmission to neutral and raise the body at the required engine rpm. Lowering the dump body is done the same way, flick the switch and the machine will lower the body and place it in float.
  • Hill Assist reduces potential ‘roll-back’ on grades. If an operator stops the machine on a grade, when taking his foot off the service brake pedal, the machine will automatically hold the service brakes to prevent machine rolling backwards.
  • The waiting brake applies the service brakes when neutral gear is selected, allowing quick and easy control of the machine at the load or dump area.

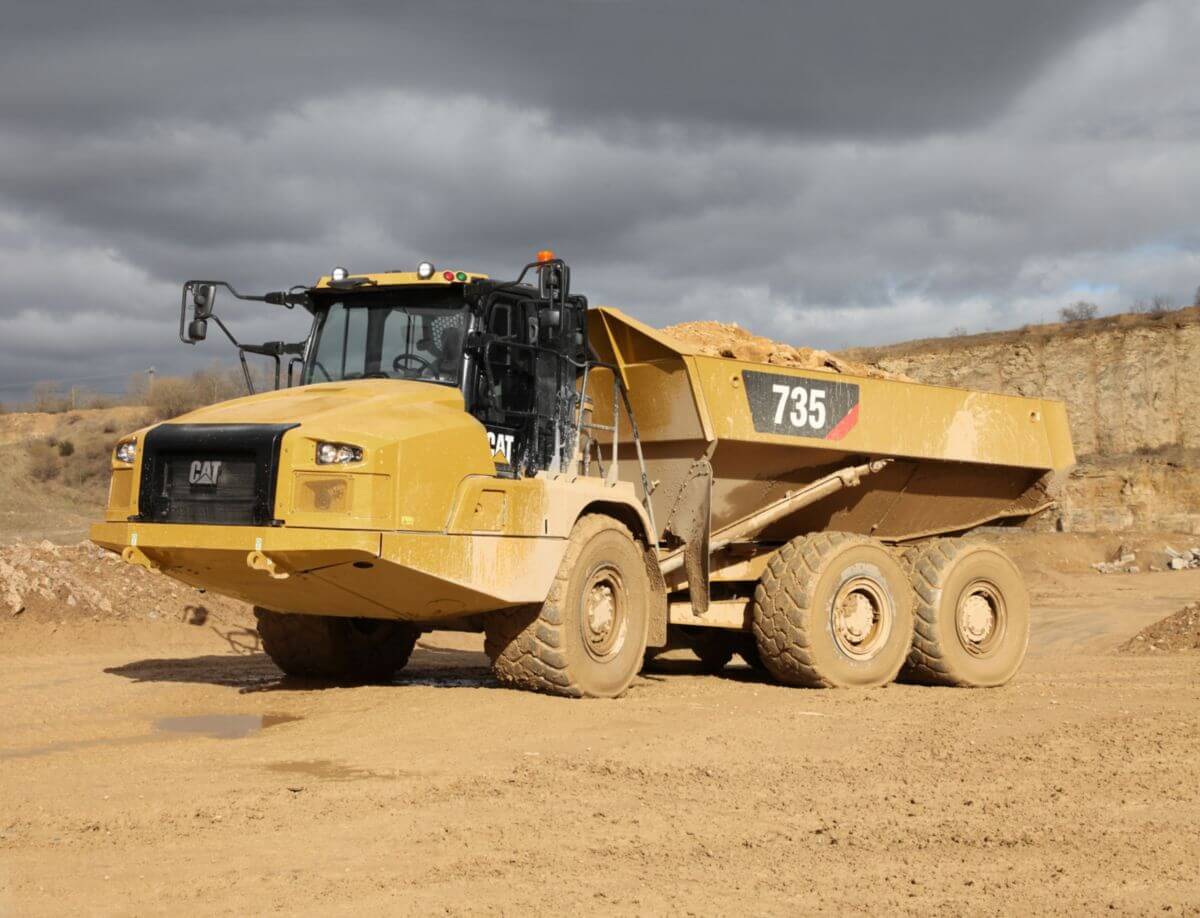

Cat 735 Articulated Haul Truck

HEAVY DUTY CONSTRUCTION

  • All three axles promote stability using oscillating a-frames with lateral tie rods. Operate at productive speeds with confidence while virtually eliminating impact loads on truck components.
  • The front suspension oscillates ±6° controlled by large-bore, low-pressure cylinders to assist in a smooth ride.
  • The rear suspension features a walking beam and long-life suspension mounts optimizing ride and load retention.
  • New fully enclosed wet disc brake systems inside of axles keeps contaminants out extending machine life and ensuring uptime.
Cat 735 Articulated Haul Truck

OPERATOR COMFORT AND CONTROL

  • Spacious cab delivers comfort all shift long and is 7dB quieter than prior model.
  • Unique combination hoist/transmission lever is intuitive and enhances cycle times with fewer control movements.
  • Trainer/passenger seat is fully padded with wide, retractable seat belt for security and comfort.
  • New large side storage box is heated/cooled by the HVAC system.
  • Air-suspension seat offers greater comfort, with a greater range of adjustments. Fore/aft isolation dramatically reduces vibrations and jolts. Every operator will find a adjustments to ensure comfort and control all shift long.
  • Standard cooling/heating system ensures comfort in all conditions.
  • Optional four-point seat belt is available to help operator stay in position and comfortable in rugged terrain.
  • Integrated, wrap-around dash means all gauges and controls are easy to monitor and access. Automotive feel with Caterpillar's renowned industrial strength.
  • Color display panel provides performance and condition pages, and includes video feed from the rearview camera and machine payload (when fitted).
  • Optional Bluetooth™ entertainment system allows operator to stay in hands-free phone contact.
Cat 735 Articulated Haul Truck

BUILT TO PERFORM

  • Box section front frame absorb is stiff to handle torque loads. Frame design decreases stress at the hitch and optimizes suspension geometry.
  • Rear frame features twin-box construction minimizing stress points and enhancing service life.
  • Front axle suspension provides excellent ride via a three-point oscillating design.
  • Articulating/oscillating hitch provides steering control and keeps all wheels on the ground in the toughest terrain.
  • Dump body design provides a large target area for consistent high-load carrying capacity increasing productivity. Diverging flow when dumping aids material flow out of the body maximizing productivity and avoiding carry-back.
  • Output transfer gear distributes power to tractor and trailer for optimum traction. Wet clutch ensures longevity.
  • Dual-circuit, all-wheel braking system uses full-power hydraulic system actuating enclosed, oil immersed, multi-disc brakes. Independent front and rear circuits and accumulators deliver smooth control.
  • Center axle parking brake is elevated away from damage. Spring applied with hydraulic release.
735 Three Axle Articulated Truck

TECHNOLOGY THAT GETS WORK DONE

  • Cat Product Link wirelessly connect you to your equipment, giving you valuable insight into how your machine or fleet is performing. The system tracks location, hours, fuel usage, productivity, idle time, and diagnostic codes through the online VisionLink user interface so you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
  • Cat Production Measurement brings payload weighing to the cab to help optimize job site efficiency and productivity. Operators can view real-time load weights on the integrated display and know precisely when target is achieved, while cab-mounted external payload lights on all four corners signal the loader operator when to stop, reducing the risk of machine overloading. Operators can track daily productivity from the cab, with quick access to truck payload weights, loads and cycle counts, and daily totals; or remotely via LINK technologies.
  • Cat Detect with Stability Assist warns the operator if machine is approaching a pre-set angle during operation; when driving and tipping. If using the assisted hoist, the machine will stop hoisting the body and give an audible and visual warning. The system monitors angles of tractor, trailer and grade independently. This increases operator awareness of machine stability during operation. All tractor and/or trailer rollover events are logged and reported via VisionLink.
Cat 735 Articulated Haul Truck

BECAUSE UPTIME COUNTS

  • Caterpillar design, manufacturing and customer service help ensure peak performance and uptime.
  • Long service intervals keep your machine operating.
  • Lubrication points are grouped near the hitch for fast, easy routine maintenance.
  • Universal joints are sealed and lubed for long life.
  • Optional autolube system saves time and includes alerts via Product Link for low levels and fault codes.
  • Radiator package is located behind the cab for protection and uses extended-life coolant to stretch change intervals.
  • Electrical service center is located inside the cab and provides a power port, diagnostic connector and Cat Data Link connector for use with Electronic Technician (ET) software-equipped laptop computer.
  • Easy access to transmission, drive shafts, hydraulic pumps and electrical and hydraulic interfaces provided with tilt-to-side cab and access panel.
  • Service points are conveniently located on the left side of the engine, under the electrically raised hood.
  • Complete customer support is the goal of your Cat dealership. From counsel of product selection, operating costs, operation, maintenance all the way to help with decisions on when and whether to replace or rebuild, your dealer is with you all the way.
Cat 735 Articulated Haul Truck

MORE SUSTAINABLE FUTURE

  • Caterpillar designs and functions with great concern for the environment.
  • Cat C13 engine incorporates the Cat Clean Emission Module (CEM) to meet Tier 4 Final/Stage IV emission standards. The system uses both Ultra-low-sulfur diesel (ULSD) fuel or up to B20 bio-diesel blended with ULSD.
  • All Cat C Series Articulated Trucks are designed for long lifecycles with machines using reman components and machine rebuilds to maximize use of every part, minimizing waste.
  • Volume of both hydraulic and engine oil systems has be reduced meaning less waste when oils are replaced.
Cat 735 Articulated Haul Truck

BUILT-IN SAFETY FEATURES

  • Seat belt in use indicator (four-point seat belt available as an option)
  • Operator presence detection (prevents gear engagement when operator is not seated)
  • Additional mirror for front of machine visibility
  • Cab mounted, wide angled, folding mirrors
  • Heated mirrors (optional)
  • Body raised visual indicator
  • Cab integral Roll Over Protection System (ROPS) and Falling Object Protection System (FOPS)
  • Electro-hydraulic secondary steering system automatically activates in forward/reverse or when stationary if low pressure is sensed and can be manually selected for machine recovery purposes
  • Extensive handrails
  • External electrical system disconnect switch for easy access from outside of the machine
  • Fire extinguisher in-cab mounting point
  • Fully raised body locking pin
  • Ground level external engine fuel cut-off switch provides easy access outside of the machine
  • In-cab emergency brake switch (tertiary)
  • Internal and external grab handles
  • LED-flashing beacon (optional)
  • Maximum speed limiter
  • Multiple camera compatible
  • New access lights
  • Rearview camera system is fitted as standard
  • Reversing indicator
  • Slip resistant walkways – punched steel plate
  • The parking brake functions are spring applied and hydraulic released
  • Cat Detect with Stability Assist
Cat 735 Articulated Haul Truck
